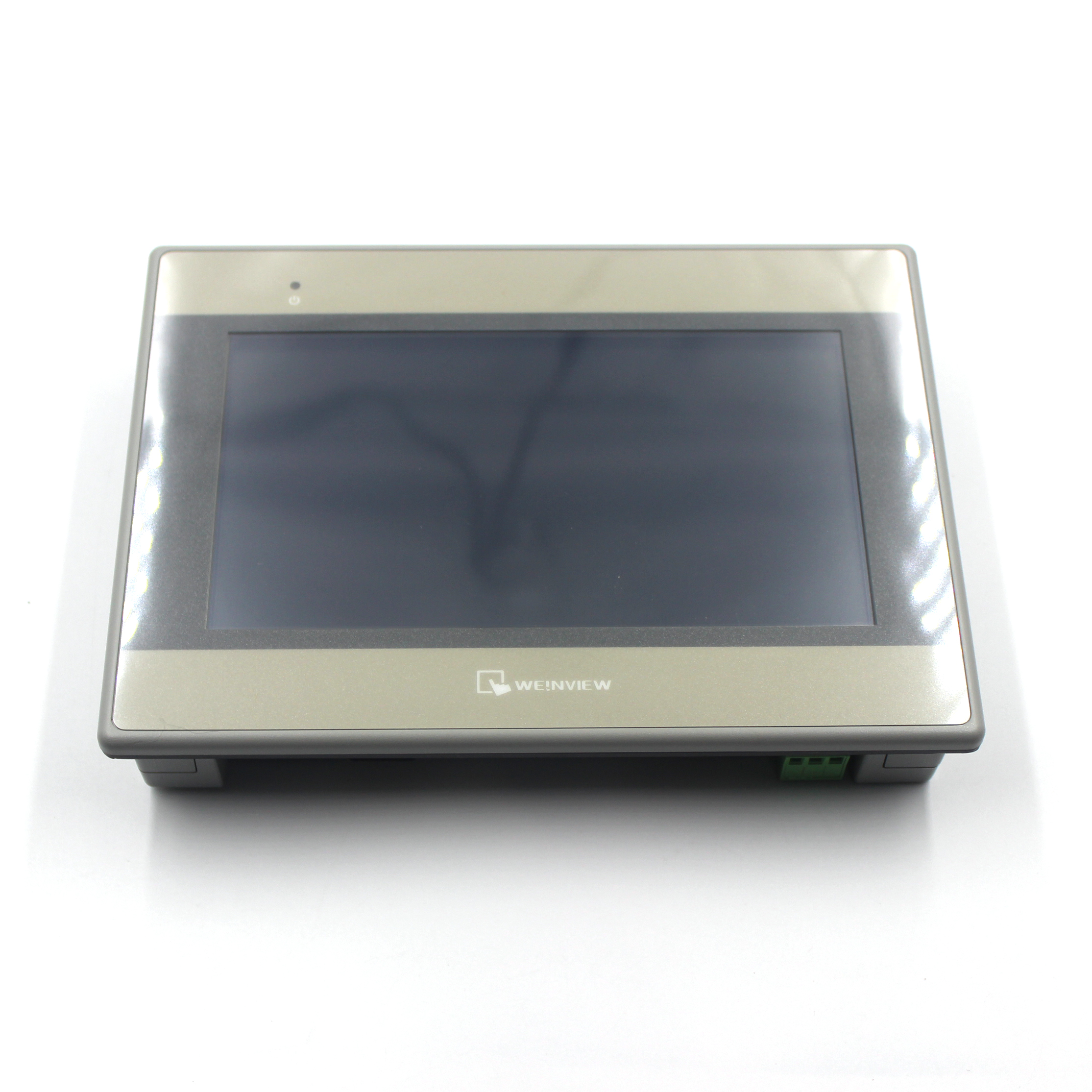

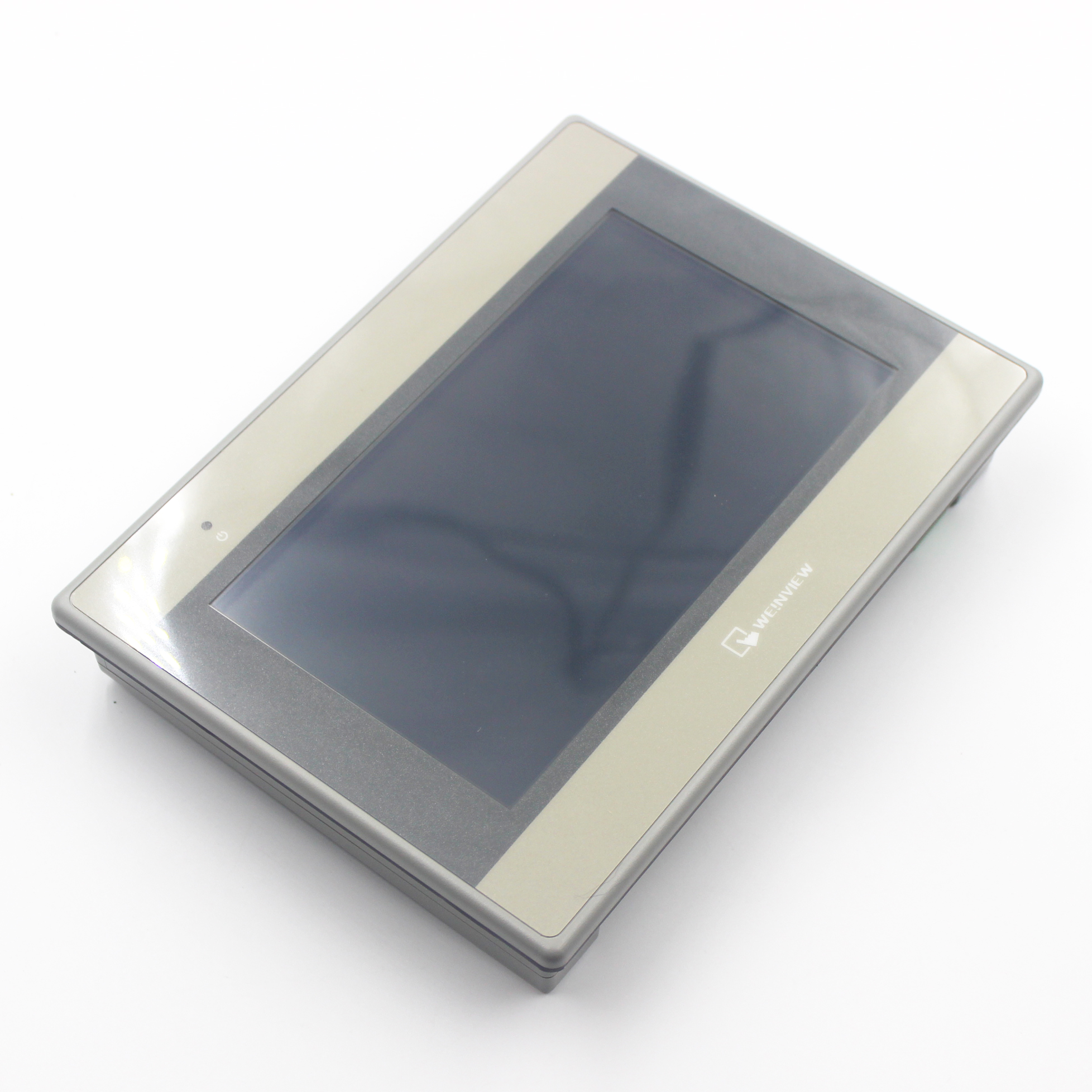

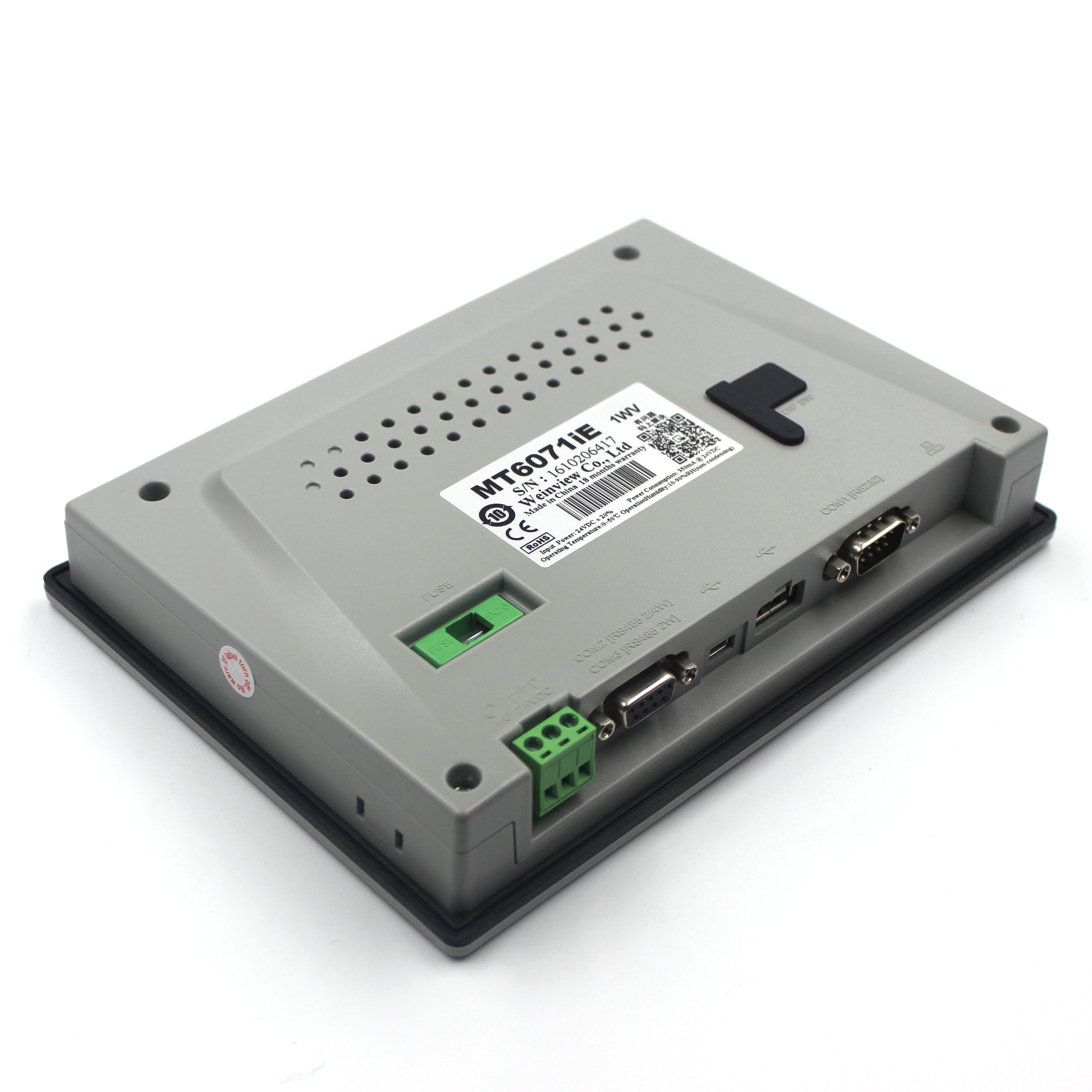

MT6071IE HMI touch screen 7 inch LED touch screen monitor

Product Description

  Product Description Features
1. 7" 800x480 TFT LCD, LED Backlight
2.  Fan-less Cooling System
3. USB Client Port for downloading projects
4. COM2 and COM3 [RS485] support MPI 187.5K, please use one at one time
5.  NEMA4/IP65 Compliant Front Panel
6.  Built-in Power Isolation Technical Parameter

 Display

 7" TFT Widescreen

 Resolution

800x480

 Brightness (cd/m²)

300cd/m2

 Contrast Ratio

500:1

 Back Light

 LED

 Life Time

30,000 hr

 Touch Panel Type

 4 wires resistive type

 Storage(MB)

128MB

 Storage RAM(MB)

128MB

 Processor

32 bit RISC CPU 600 MHz

 SD Card Slot

Yes

 USB Host

USB 2.0 x 1

 USB Client

USB 2.0 x 1

 Ethernet Port

10/100 Base-T

 COM Port

COM1 (RS232 / RS485 2W/4W),COM(RS232)
COM3(RS485 2W)

 Audio

N/A

 RTC

Yes

 Input Power

24± 20% VDC

 Power Consumption

350mA@24 VDC

 Panel Cutout (mm)

 200x142mm

 Weight(g)

580g
