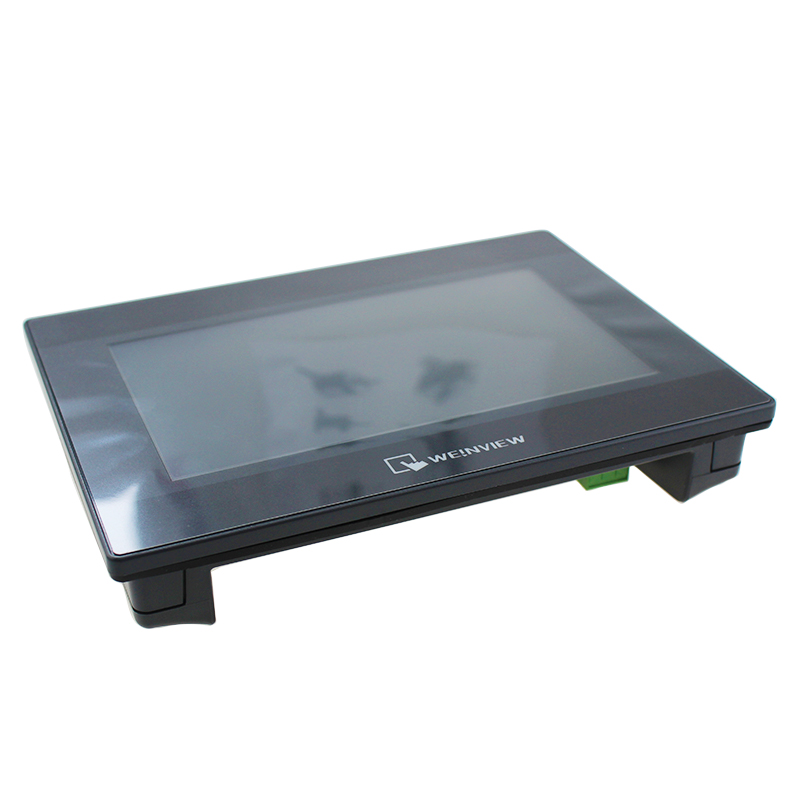

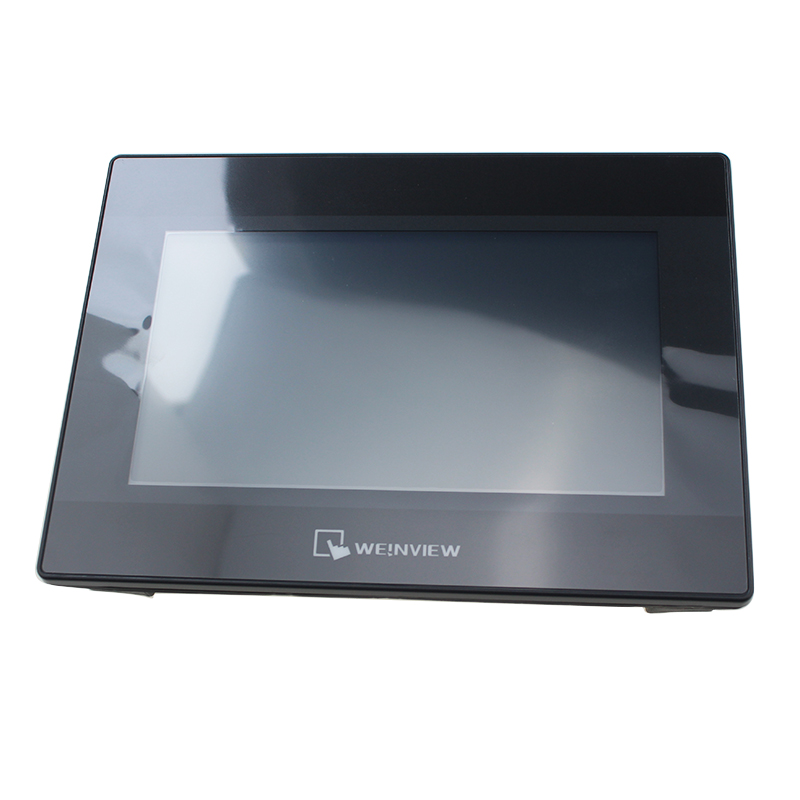

Weintek MT8071IP 7" TFT LCD Display Ethernet Interface HMI touch screen
|Display||Display||7” TFT LCD|
|Resolution||800 x 480|
|Backlight Life Time||>30,000 hrs.|
|LCD Viewing Angle (T/B/L/R)||70/50/70/70|
|Touch Panel||Type||4-wire Resistive Type|
|Accuracy||Active Area Length(X)±2%, Width(Y)±2%|
|Processor||32 bits RISC Cortex-A8 600MHz|

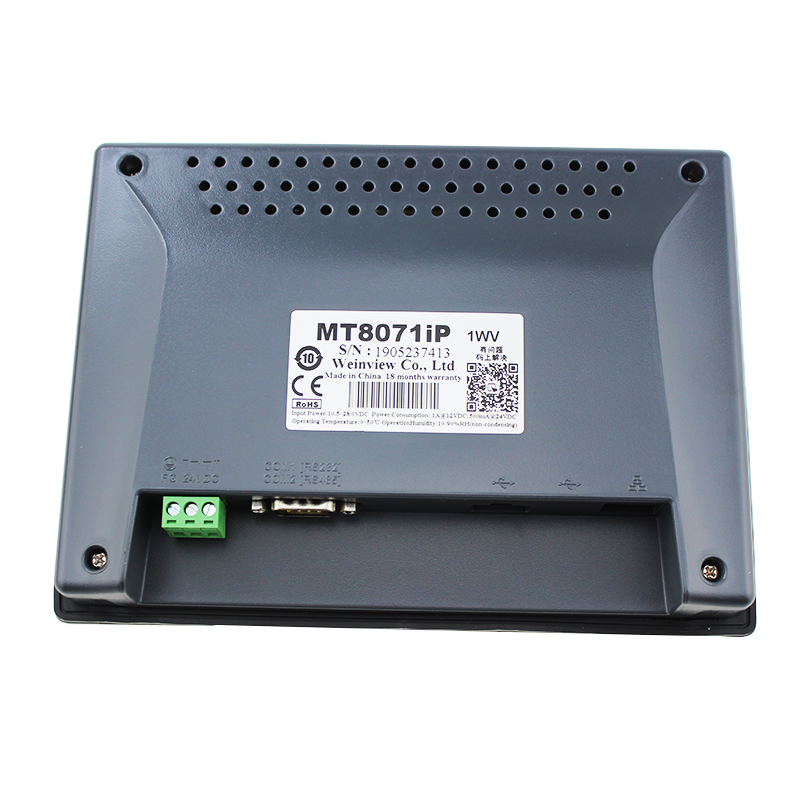

|I/O Port||USB Host||USB 2.0 x 1|
|Ethernet||10/100 Base-T x 1|
|COM Port|| COM1: RS-232 |
COM2: RS-485 2W/4W
|RS-485 Dual Isolation||N/A|
|Power Consumption||1A@12VDC ; 500mA@24VDC|
|Voltage Resistance||500VAC (1 min.)|
|Isolation Resistance||Exceed 50MΩ at 500VDC|
|Vibration Endurance||10 to 25Hz (X, Y, Z direction 2G 30 minutes)|
|Dimensions WxHxD||200.4 x 146.5 x 34 mm|
|Panel Cutout||192 x 138 mm|
|Weight||Approx. 0.52 kg|
|Environment||Protection Structure||NEMA4 / IP65 Compliant Front Panel|
|Storage Temperature||-20°~60°C (-4°~140°F)|
|Operating Temperature||0°~50°C (32°~122°F)|
|Relative Humidity||10% ~ 90% (non-condensing)|
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods. Q:About company?
A:Established in 2007, and have got great success with its professional working team, we has been specialized in digital products for over 10 years, and mainly about HMI, PLC Encoder sensor and other industrial control products. Q:Where is your company located? How can I visit there?
A:Our factory is located in wenzhou, China, about 2 hours ride from wenzhou Airport. All our clients, from home and abroad, are warmly welcome to visit us! Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C. Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply with in 24hrs. Q:What kind of packing do you send?
A:We use high-quality corrugated paper packing box, internal environmental protection buffer material. Thank you & Now pls send your kindly inquiry ! ^!^ Contact us if you need more details on HMI. We are ready to answer your questions on packaging, logistics, certification or any other aspects about MT8071IP、touch screen. If these products fail to match your need, please contact us and we would like to provide relevant information.
