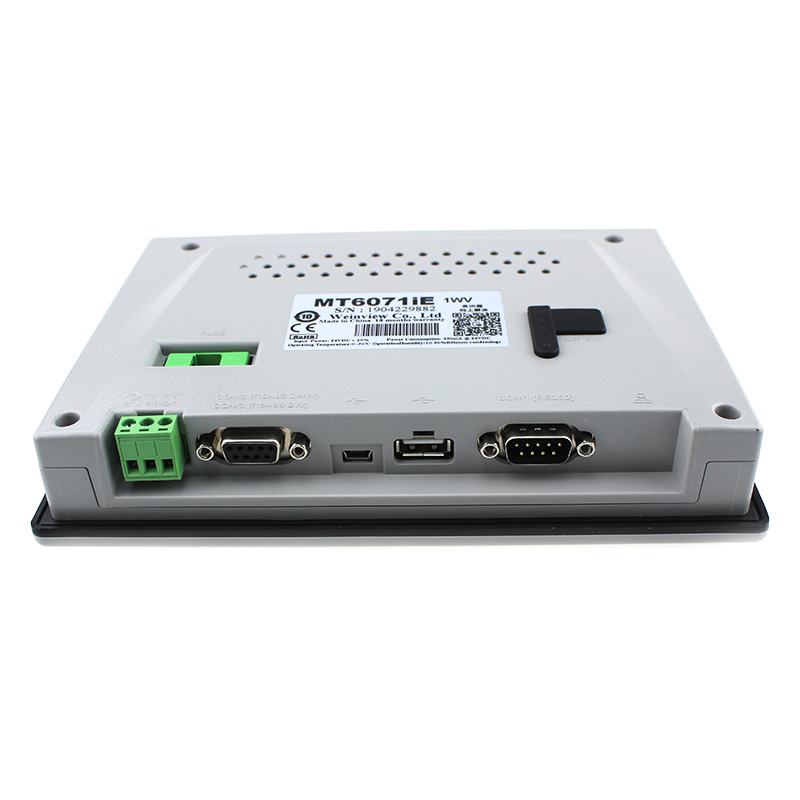

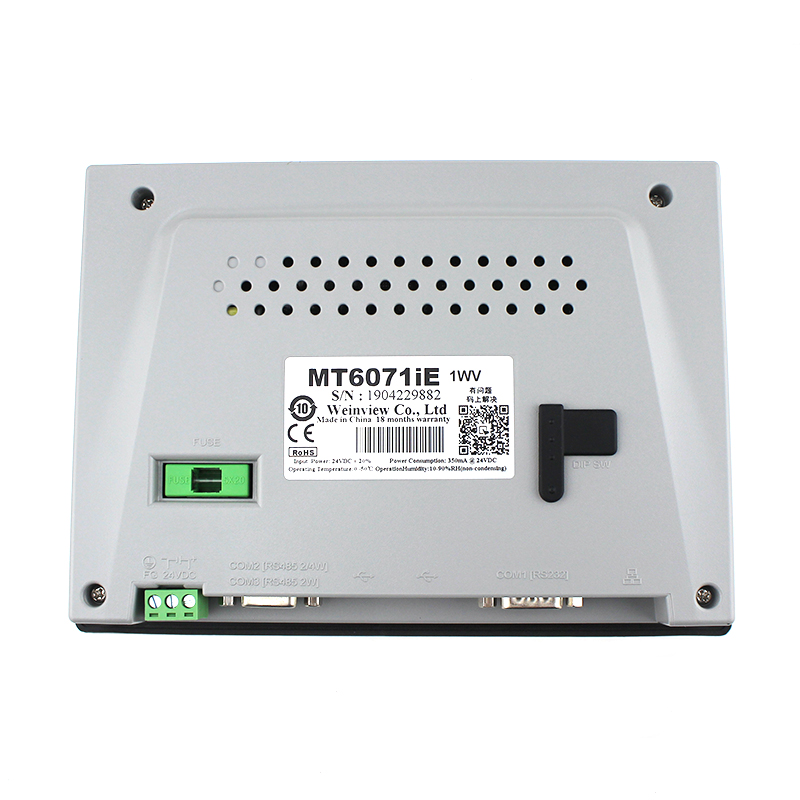

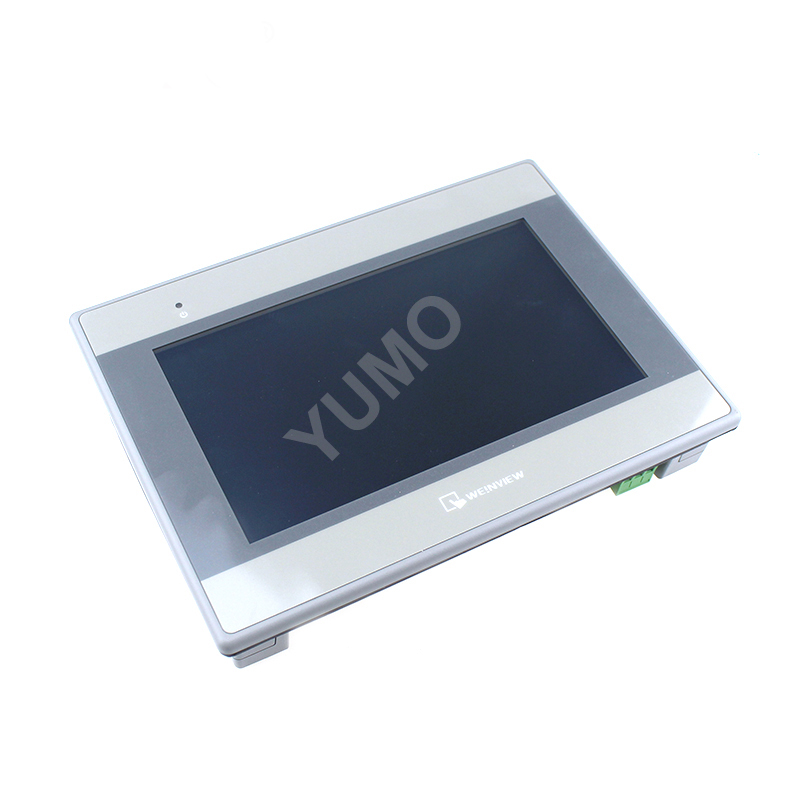

7" TFT Display weintek weinview mt6071ie proface HMI

Product Description

1.Feature
1. 7" 800x480 TFT LCD, LED Backlight
2.  Fan-less Cooling System
3. USB Client Port for downloading projects
4. COM2 and COM3 [RS485] support MPI 187.5K, please use one at one time
5.  NEMA4/IP65 Compliant Front Panel
6.  Built-in Power Isolation     2. Technical Parameter
Display  Display 7” TFT LCD
Resolution (WxH dots) 800 x 480
Brightness (cd/m2) 350
Contrast Ratio 500:1
Backlight Type >30,000 hrs
Colors 16M
Touch Panel  Type 4-wire Resistive Type
Accuracy Active Area Length(X)±2%, Width(Y)±2%
Memory Flash 128 MB
RAM 128 MB
Processor   32 bits RISC Cortex A8 600MHz
I/O Port USB Host USB 2.0 x 1
USB Client USB 2.0 x 1
Ethernet N/A
COM Port COM1: RS-232, COM2: RS-485 2w/4w, COM3: RS-485 2w
RTC    Built-in
Power Input Power 24±20%VDC
Power Isolation Built-in
Power Consumption 350mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance Exceed 50MΩ@ 500VDC
Vibration Endurance 10 to 25Hz(X,Y,Z direction 2G 30 minutes)
Specification  Enclosure Plastic
Dimensions WxHxD  200.3 x 146.3 x 35mm
Panel Cutout 192 x 138mm
Weight Approx.0.6 kg
Environment Protection Structure  NEMA4 / IP65
Storage Temperature  -10°~60°C (14° ~ 140°F)
Operating Temperature 0°~50°C (32° ~ 122°F)
Relative Humidity  10% ~ 90% RH (non-condensing)
PCB Coating N/A
Certificate CE CE marked
Software    EasyBuilder Pro V4.10.04 or later
  Main Products Company Information   FAQ Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
     2) We make the PI for you.
     3) After you confirm the PI, we arrange the order for you after receiving your payment.
     4) After the goods finished, we send the goods out to you and tell you the tracking number.
     5) We will track your goods until you receive the goods. Q:About company?
A:Established in 2007, and have got great success with its professional working team, we has been specialized in digital products for over 10 years, and mainly about HMI, PLC Encoder sensor and other industrial control products. Q:Where is your company located? How can I visit there?
A:Our factory is located in wenzhou, China, about 2 hours ride from wenzhou Airport. All our clients, from home and abroad, are warmly welcome to visit us! Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C. Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply with in 24hrs. Q:What kind of packing do you send?
A:We use high-quality corrugated paper packing box, internal environmental protection buffer material.   Thank you & Now pls send your kindly inquiry ! ^!^

Contact us if you need more details on proface HMI. We are ready to answer your questions on packaging, logistics, certification or any other aspects about weintek、touchwin hmi. If these products fail to match your need, please contact us and we would like to provide relevant information.
