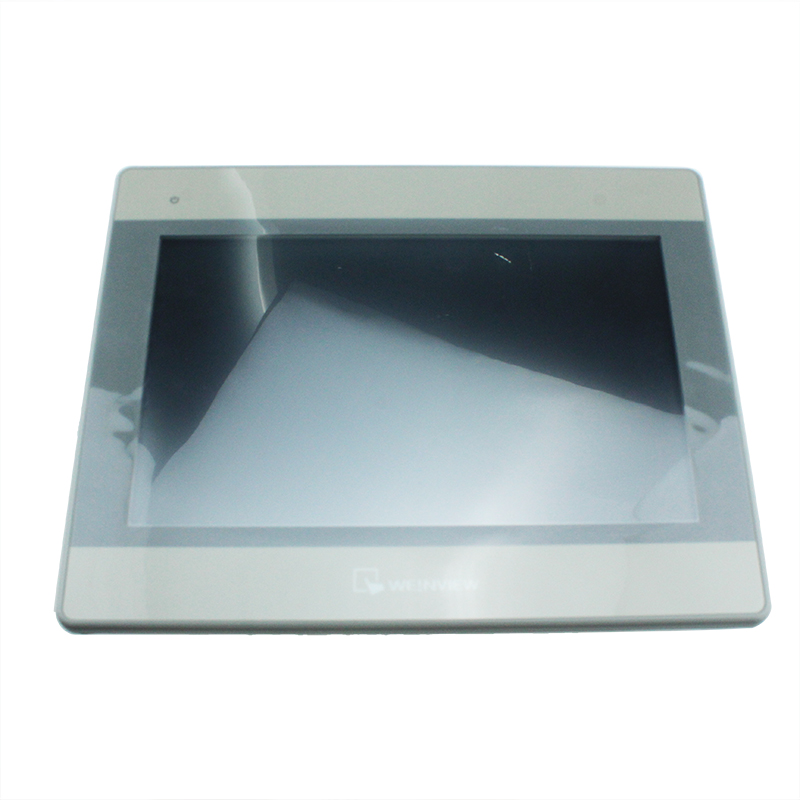

Weinview MT8101IE 10.1 inch MT Series Ethernet Touch Screen HMI

Product Description

weintek weinview MT8101IE 10.1 inch MT Series Ethernet Touch Screen HMI Product Description Feature 10.1" 800 x 480 TFT LCD, LED Backlight Fan-less Cooling System COM2 and COM3 RS-485 support MPI 187.5K, please use one at one time PCB coating process ensures high reliability to resist from corrosion in harsh environment Built-in Power Isolation NEMA4 / IP65 Compliant Front Panel Technical Specifications

Display

Display

10”TFT

Resolution

800*400

Brightness (cd/m2)

300

Contrast Ration

500:1

Backlight Type

LED

Backlight Life Time

>30000hr

Colors

262K

Touch Panel

Type

4-wire Resistive Type

Accuracy

Active Area Length(X)±2%  Width(Y)±2%

Memory

Storage (MB)

128

RAM (MB)

128

Processor

-

Cortex-A8 32Bit RISC 600MHz

I/O Port

USB Host

USB 2.0*1

Ethernet

1 RJ45 port (10/100 Base-T)

COM Port

COM1: RS-232

COM2: RS-485 2W/4W

COM3: RS-485 2W

RTC

-

Built-in

Power

Input Power

24±20% VDC

Power Consumption

400mA@24VDC

Voltage Resistance

500 VAC (1 min)

Isolation Resistance

Exceed 50MΩ at 500VDC

Vibration Endurance

10~25Hz(x,y,z direction 2G 30 minutes)

Specification

Enclosure

Plastic

Dimensions (W*H*D)

271*213*40mm

Panel Cutout (mm)

260*202

Weight (kg)

Approx. 1.3kg

Environment

Protection Structure

NEMA4/IP65

Storage Temperature

-20℃~60℃(-4℉~140℉)

Operating Temperature

0℃~50℃(32℉~122℉)

Relative Humidity

10~90%@40C(non-condensing)

Certificate

CE

CE marked

Software

-

EasyBuilder Pro V4.10.04 or later versions

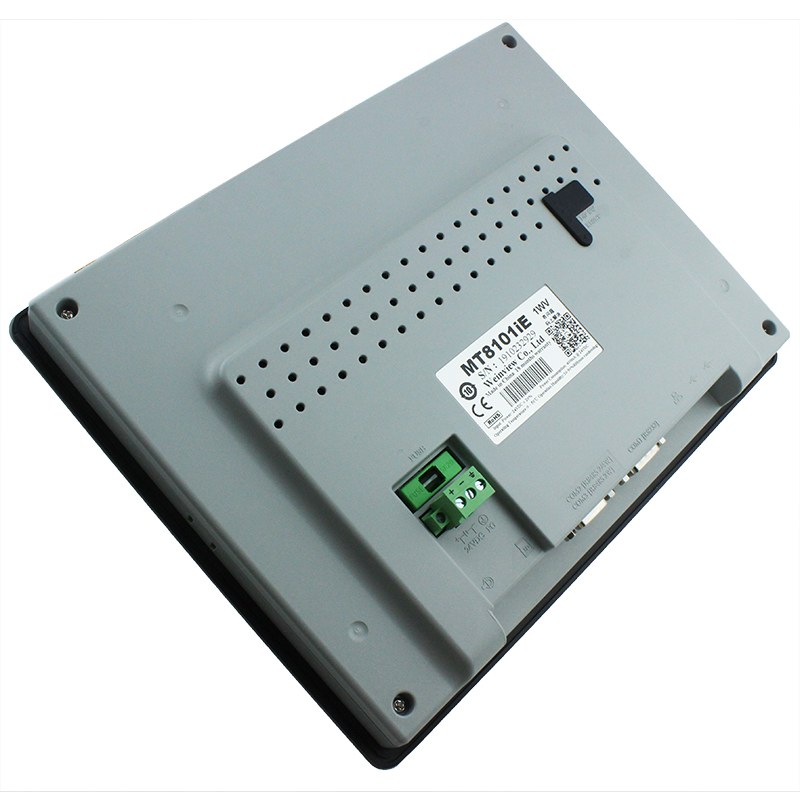

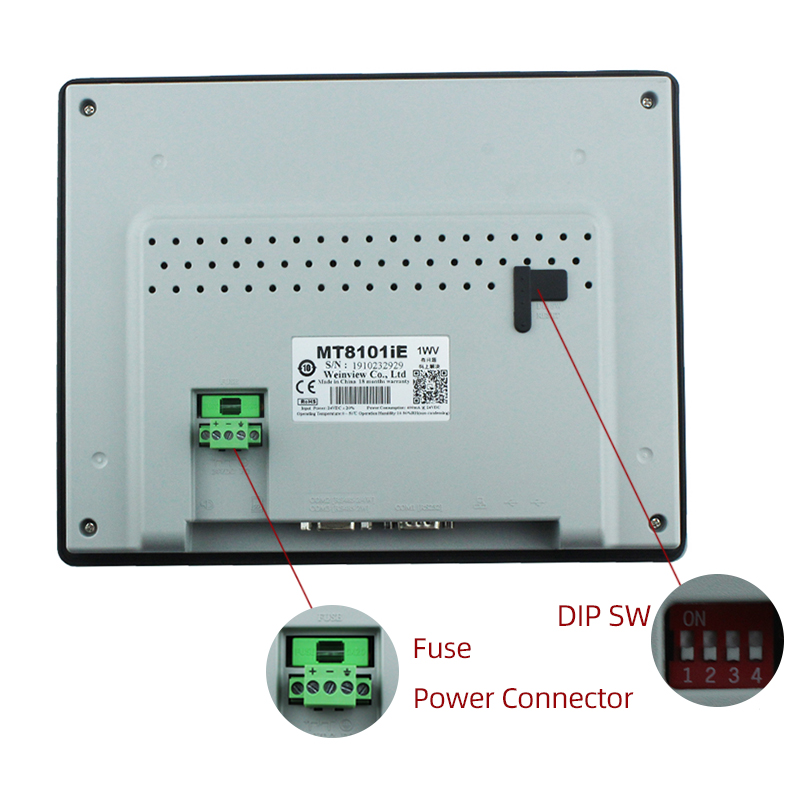

        Pin Assignment:  COM1 [RS232] 9 Pin, Male, D-sub
PIN#  Symbol COM1 [RS232]
1 Not used
2 RxD Received Data
3 TxD   Transmitted Data
4 Not used
5 GND   Ground
6 Not used
7 RTS   Ready to send output
8 CTS   Clear to send input
9 Not used
  COM2 / COM3 [RS485] 9 Pin, Female, D-sub

 PIN#

 Symbol  Com2 [RS485]2w  Com2 [RS485]4w Com3 [RS485]
 1  Rx- Data-  Rx-
RX+  Data+  Rx+
Tx-    Tx-
Tx+    Tx+
GND    Ground
Data-      Data-
Not used
8 Not used
9 Data+     Data+
