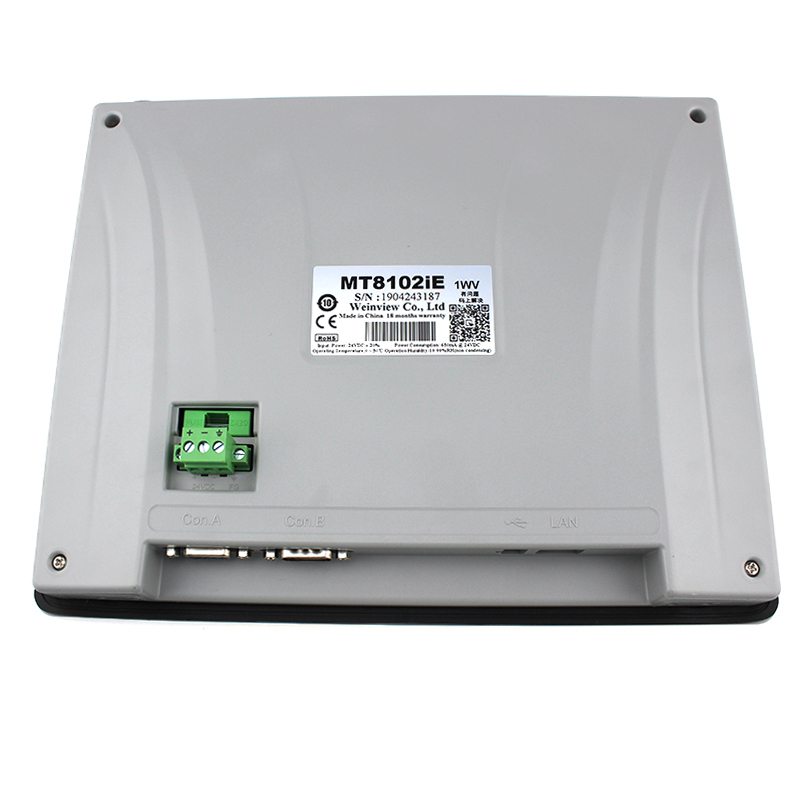

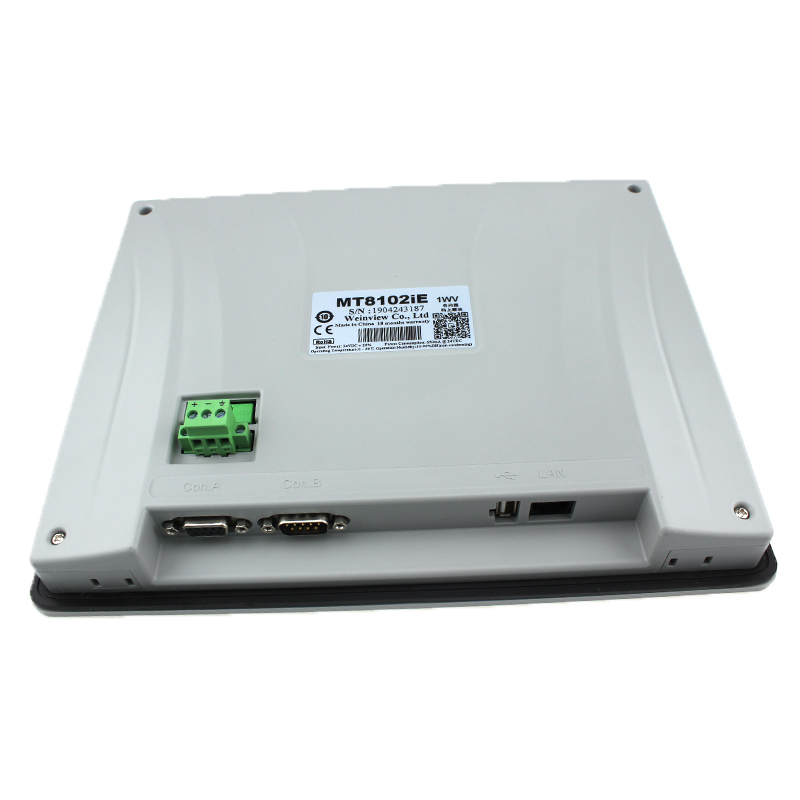

MT8102iE 10.1 inch Weintek hmi touch screen weinview

Product Description

MT8102iE 10.1 inch Weintek HMI touch screen Product Description
Model  MT8102iE
Display Display  10.1” TFT
Resolution 1024 x 600
Brightness (cd/ m*m )  350
Contrast Ratio 500:1
Backlight Type  LED
Backlight Life Time  >50,000 hrs.
Colors  16.7M
LCD Viewing Angle(T/B/L/R) 60/60/70/70
Pixel Pitch (mm) 0.2175(H) x 0.2088(V)
Touch Panel  Type  4-wire Resistive Type
Accuracy  Active Area Length(X)±2%, Width(Y)±2%
Memory  Flash 128 MB
RAM 128 MB
Processor 32-bit RISC 600MHz
I/O Port  USB Host  USB 2.0 x 1
Ethernet 10/100 Base-T x 1
WiFi  N/A
COM Port Con.A: COM1 RS-485 2W, COM2 RS-485 2W/4W,
COM3 RS-485 2W/4W*1
Con.B: COM1 RS-232 / COM3 RS-232*2
RS-485 Dual Isolation N/A
RTC   Built-in
Power  Input Power  24±20%VDC
Power Isolation Built-in
Power Consumption  650mA@24VDC
Voltage Resistance 500VAC (1 min.)
Isolation Resistance  Exceed 50MΩ at 500VDC
Vibration Endurance  10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Specification  PCB Coating  Yes
Enclosure  Plastic
Dimensions WxHxD 271 x 213 x 36.4 mm
Panel Cutout 260 x 202 mm
Weight  Approx. 1 kg
Mount  Panel mount
Environment  Protection Structure UL Type 4X (indoor use only)*3/ NEMA4 /IP65 Compliant Front Pane
Storage Temperature  -20° ~ 60° C (-4° ~ 140° F)
Operating Temperature  0° ~ 50° C (32° ~ 122° F)
Relative Humidity  10% ~ 90% (non-condensing)
Certificate  CE  CE marked
UL  cULus Listed (UL 61010-2-201)*3
ATEX  N/A
Software   EasyBuilder Pro EasyAccess 2.0 (Optional)
