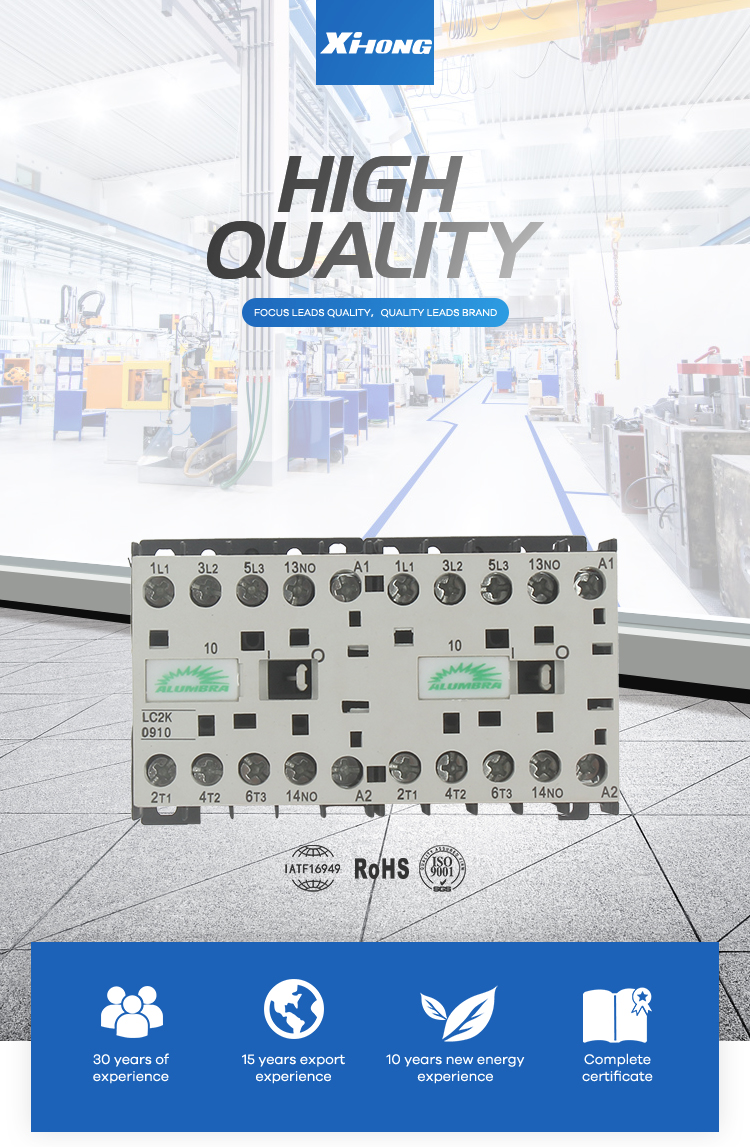

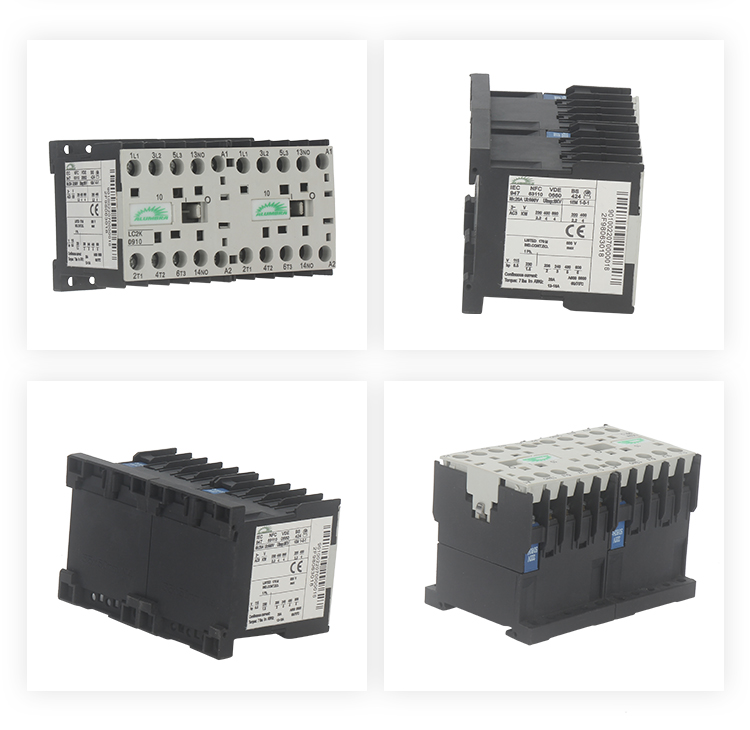

LC2K 0910 Electrical Magnetic Alternating Current Contactor 220v coil

Product Description   SPECTFICATION

Type	Rated working current A(380v)	AC-3 use group				Contact data(1)
		Control power KW
		220V	380/415V	440/500V	600V
LC2-K06	6	1.5	2.2	3	3	3P+NC 3P+NO
LC2-K09	9	2.2	4	4	4	3P+NC 3P+NO
LC2-K12	12	3	5	5	5	3P+NC 3P+NO



Specification/Type			LC2-K06	LC2-K09	LC1-K12
Use group under AC-3			6	9	12
Rated working current(Ie)A			5	7.5	10
Conventional thermal current(Ith)A			16	20	20
Rated working voltage(Ue)V			380 660
Rated insullation voltage(Ui)V			690
AC-3	Electrical life(times)		0.5*106
(6Ie Ie)	Operation frequency h-1		1200
AC-4	Electrical life(times)		10*104
(6Ie Ie)	Operation frequency h-1		300
Mecnical life			3*106
Auxiliary contact	Conventional thermal current		6A
	Electrical life	AC-15(360VA)	0.5*10
	(times)	DC-13(13W)
Coil specification	Rated control voltage(Us)		AC:12,24,45,110,220,380
			DC:12,24,45,110,220
	Pick-up voltage		AC:0.85~1.1Us DC:0.85~1.1Us
	Releasing voltage		AC:0.1~0.75Us DC:0.2~0.75Us
	Coil power VA	Pick-up	40
		Retain	4
	Consumption		1.2W
	Pick-up time		6~18ms
	Releasing time		5~23ms
	Power factor		Making 0.8   Breaking 0.3
