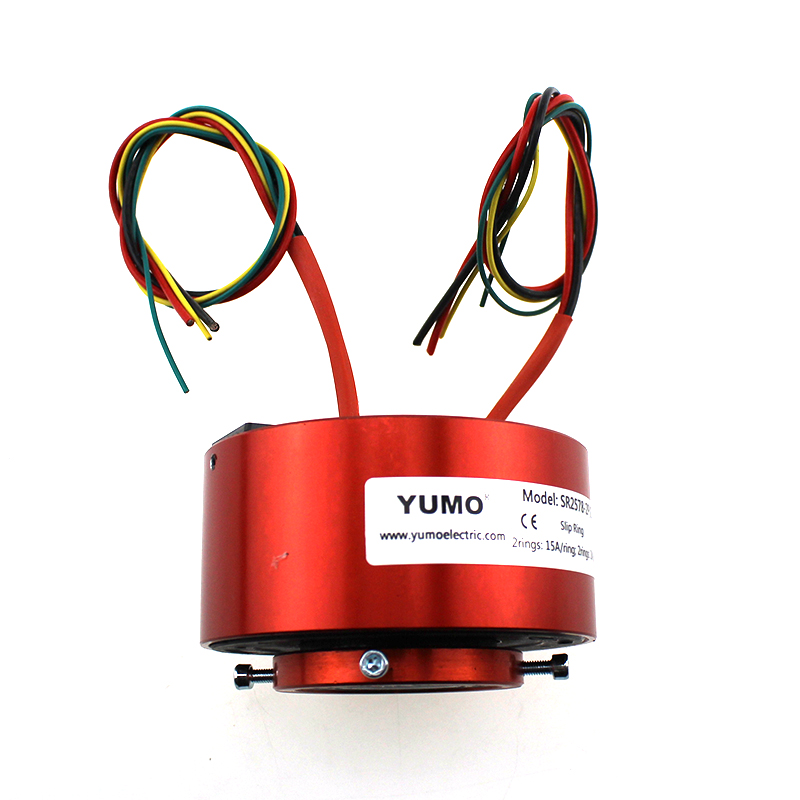

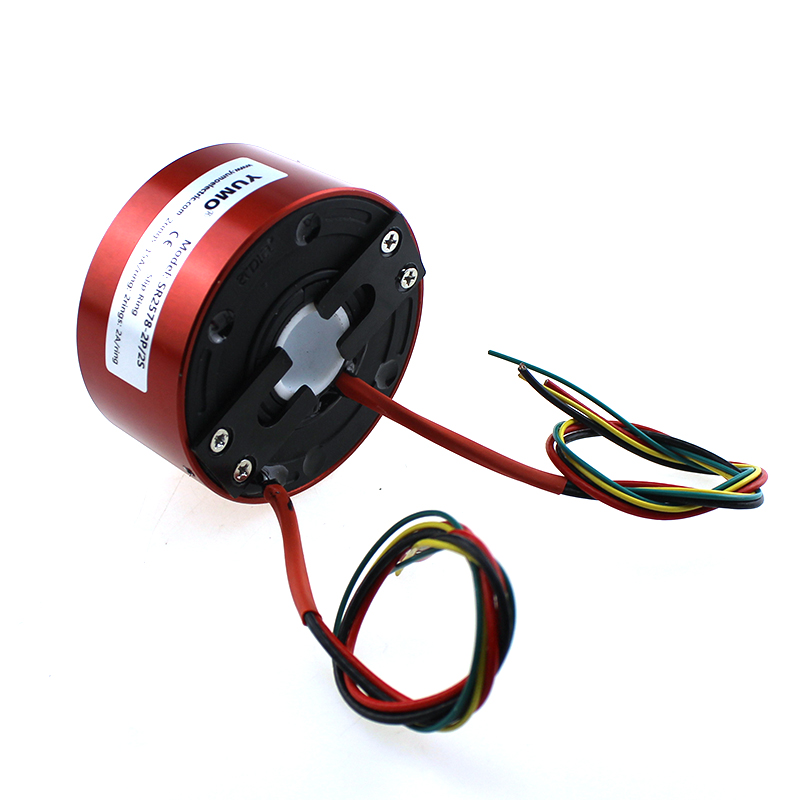

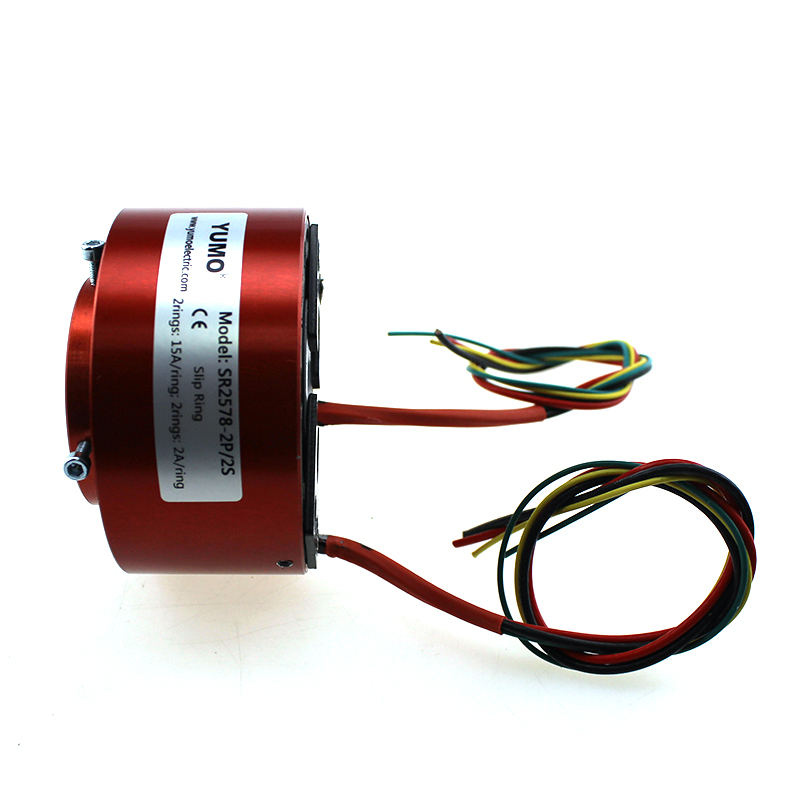

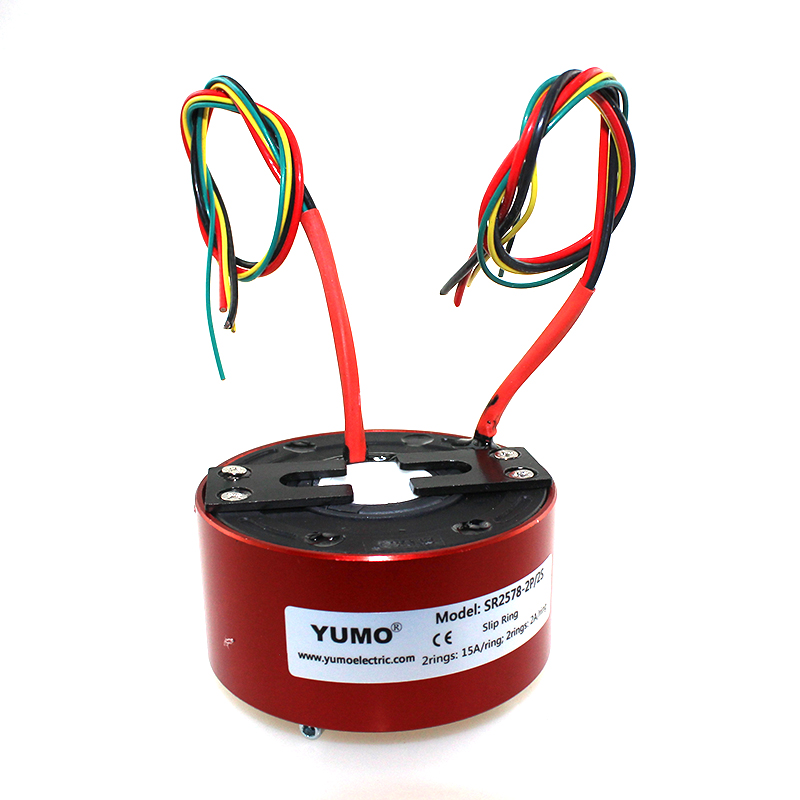

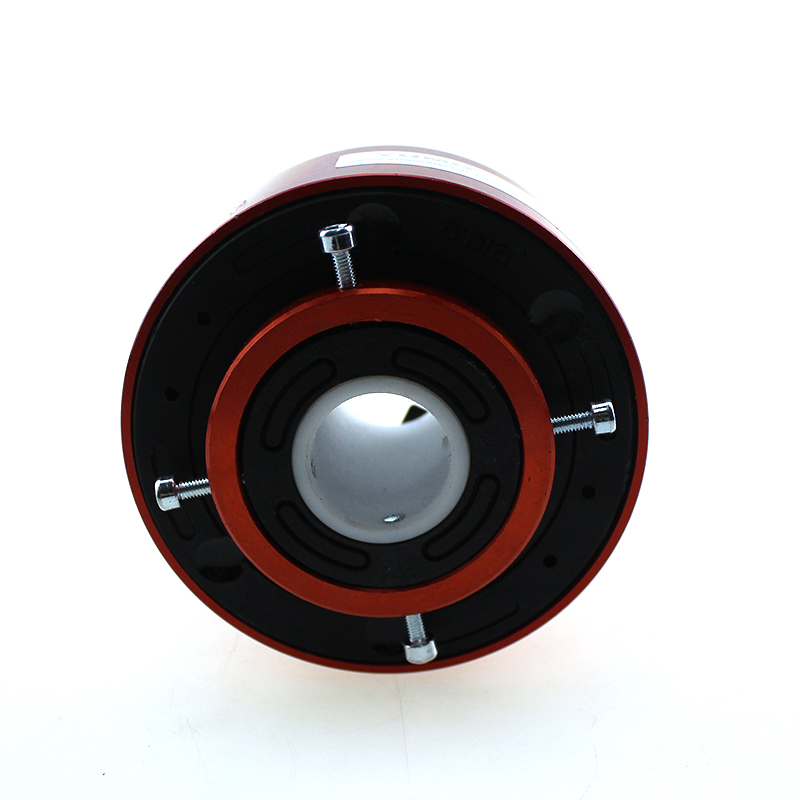

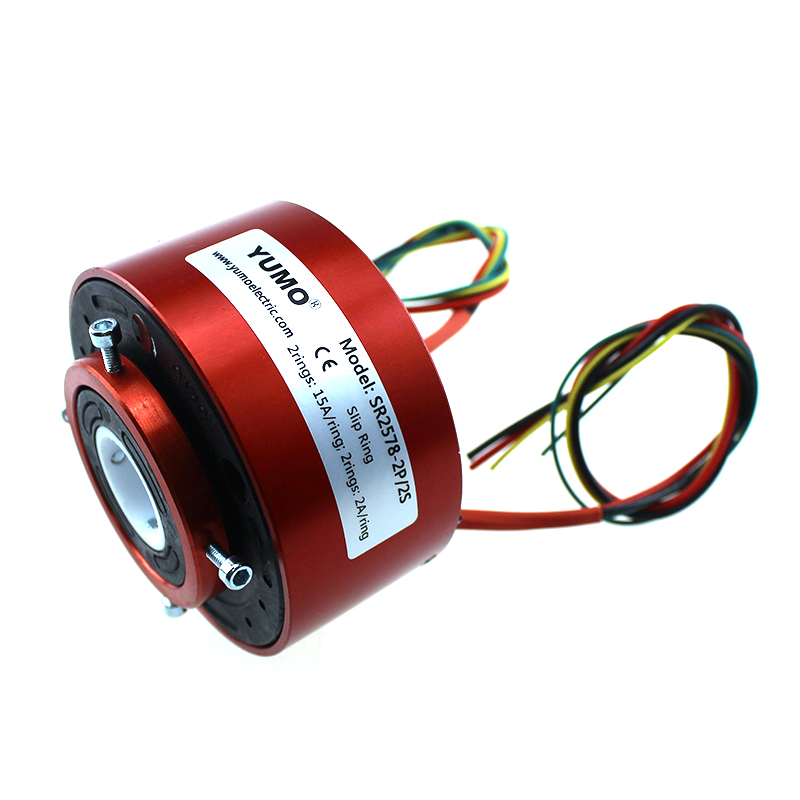

USYUMO SR2578-2P2S hole 25mm 4wires same side outlet rotating Through Bore Slip Ring

Product Description

USYUMO SR2578-2P2S hole 25mm 4wires rotating Through Bore Slip Ring   Features   SR2578-2P/2s through bore Slip Ring 4 circuits  4 circuits: 2 power circuits 15A/wire + 2 signal circuits 2A/wire Hole size 25.4mm; Outer diameter78mm; Height 38mm; Lead-out length 30cm
*Make use of advanced sheaf brush technology to design and manufacture
*Suffice 360° unrestrained continuous rotation in transmitting power and/or data
*Product modularize
*Long life and maintenance-free operation   Applications    *Industrial machine: processing center, revolving stage
*Heavy equipment, platform, cable coil, testing equipment
*Packing equipment, stacking machine, magnetic clutch, technology control equipment
*Revolving sensor, emergent illuminating equipment, robot
*Exhibition/display equipment, medical equipment
Model L=mm Current rings
Power (10A) Signal (2A)
SR2578-6P 55 6   6
SR2578-12S 79   12 12
SR2578-12P 79 12   12
SR2578-6P/12S 103 6 12 18
SR2578-24S 127   24 24
SR2578-18P 103 18   18
SR2578-12P/12S 127 12 12 24
SR2578-6P/24S 151 6 24 30
SR2578-36S 175   36 36
SR2578-24P 127 24   24
