Professional Supplier OEM Air Conditioner Purpose Relay Contactor Relay Price

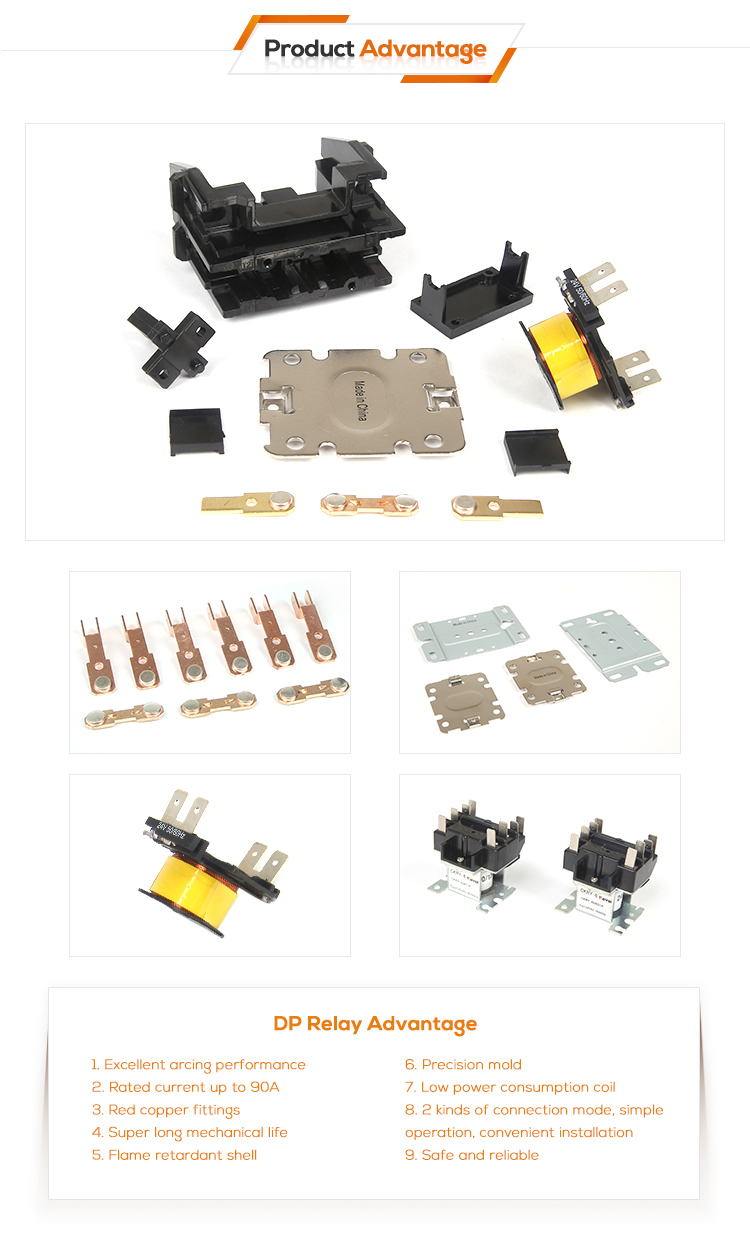

Product Description



Please Attention!

 electrical contactor types

SPNO,SPDT,DPNP&SPDT switching configurations

Class B insulation system

250" QC terminals

Multi-positional mounting

Partial Listing of Available CKYR-6 Relays

Coil Voltage 24VAC 120VAC 208/240VAC
SPNO CKYR-61AQ1A CKYR-61AT1A CKYR-61AU1A
SPDT CKYR-61CQ1A CKYR-61CT1A CKYR-61CU1A
DPNO CKYR-62AQ1A CKYR-62AT1A CKYR-62AU1A
DPDT CKYR-62CQ1A CKYR-62CT1A CKYR-62CU1A

 Contact Data

Arrangement SPNO,SPDT,1NO&1NC
Contact Material Silver Cadmium Oxide Alloy
Power Rating 12FLA 60 LRA
18 Amps Resistive @ 125VAC 8FLA 48 LRA
18 Amps Resistive @ 240/277 AC
SPST-NO only Pilot Duty Rating 25 Amps Resistive @ 277VAC
3Amps,277VAC
125VA @ 125VAC
250VA @ 250VAC
277VA @ 277VAC
Temperature Range  -55 to +125℃
Unit Weight 0.086kg
Power Pole Termiinations 250" QC
Coil Termination 250" QC
Mechanical Life Expectancy 1 million operations
Electrical Life Expectancy 250,000 operations-resistive
100,000 operations-inductive
Coil Nominal Coil Power AC 9.5VA













Contact us if you need more details on Air Conditioner Purpose Relay. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Contactor Relay Price、Magnetic Contactor Relays. If these products fail to match your need, please contact us and we would like to provide relevant information.
