Home > Products > Capacitor Contactor > SMC-C > AOASIS SMC-9C Switchover Capacitor Contactor 14A 220-240V 5kVar 400-440V 9.7kVar 550-600V 14kVar

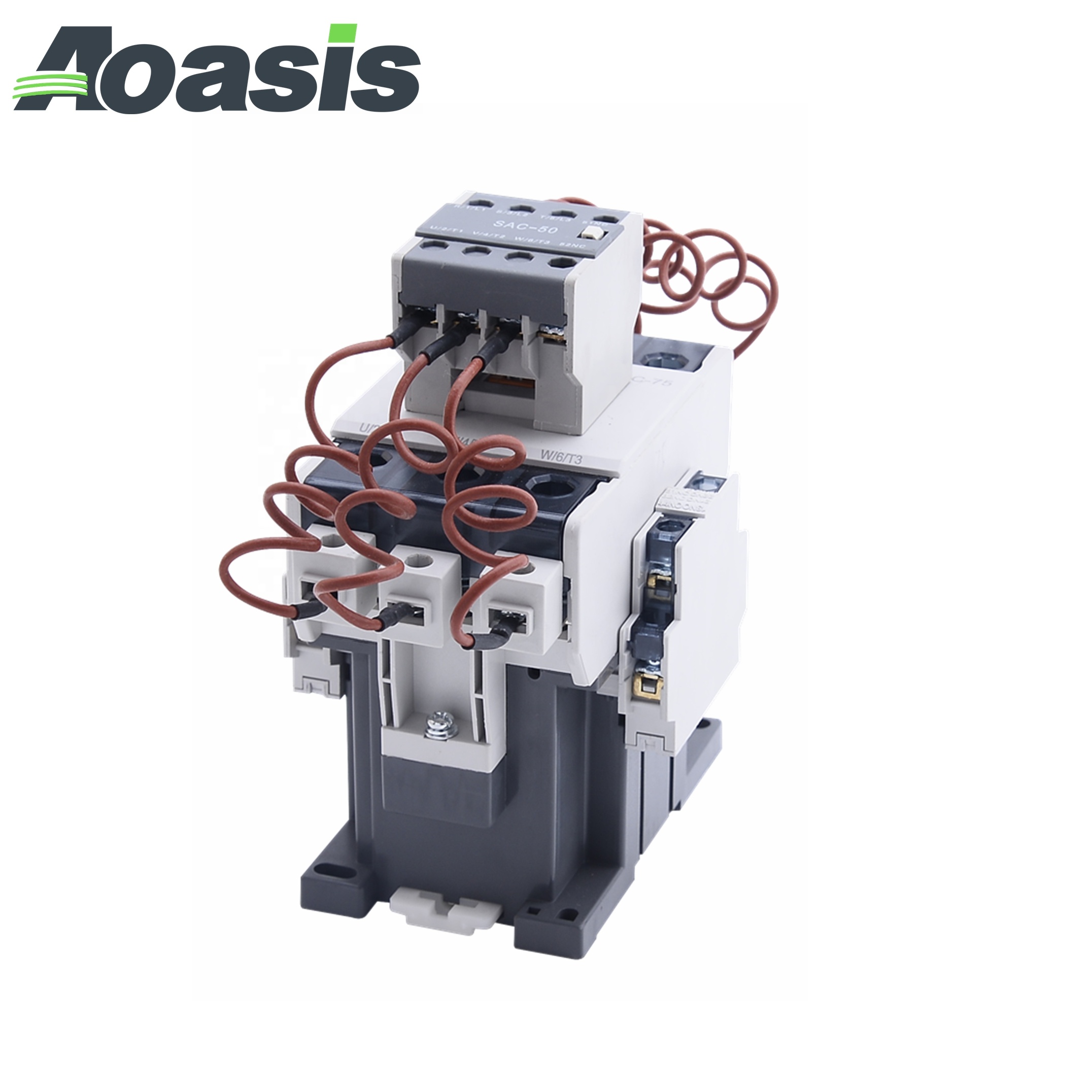

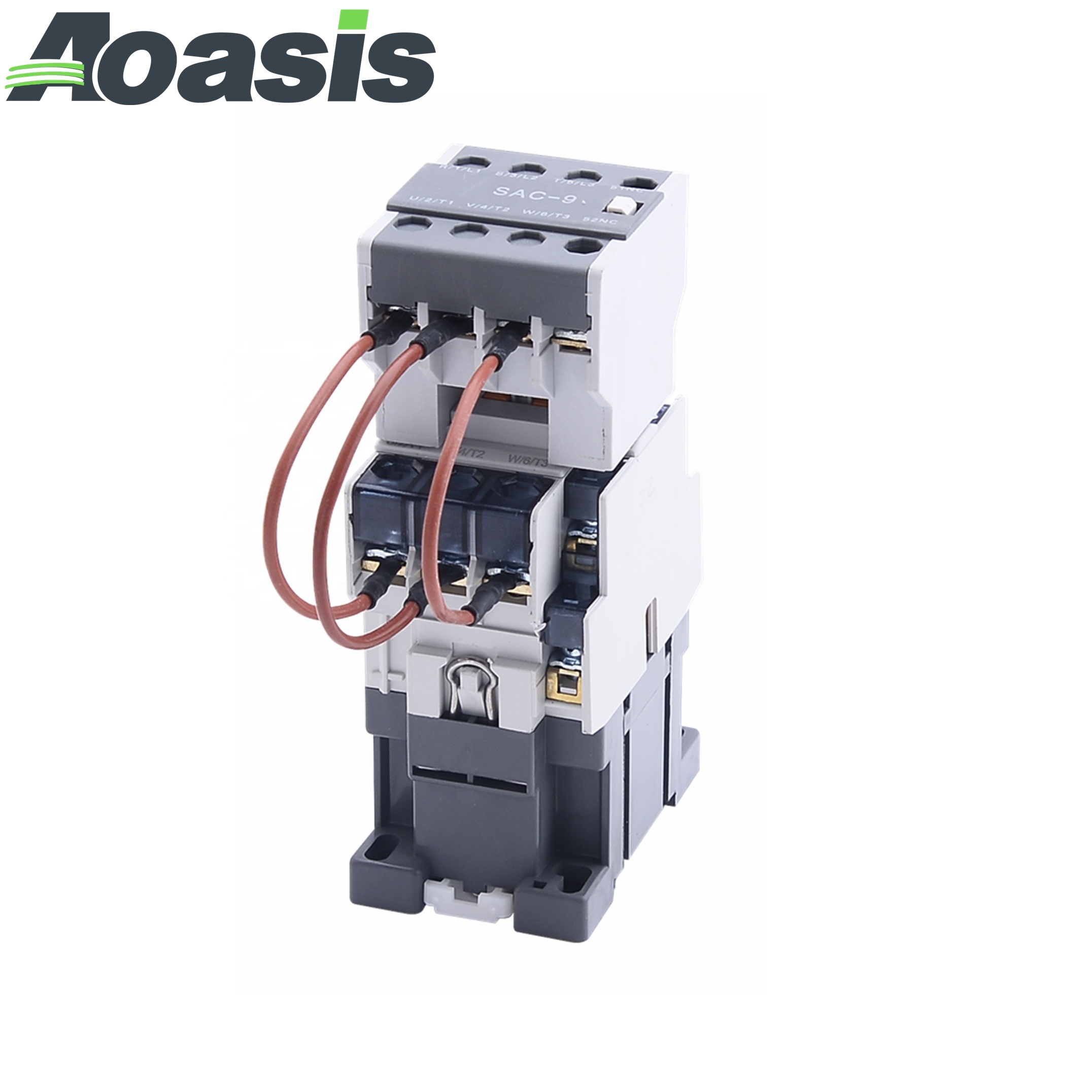

AOASIS SMC-9C Switchover Capacitor Contactor 14A 220-240V 5kVar 400-440V 9.7kVar 550-600V 14kVar

Product Description

Product Description SMC-C Switchover Capacitor Contactor can Switch over 3-phase single or multiple stage capacitor bank. In conformity with IEC69047-4-1
Article No.:
SMC-9C

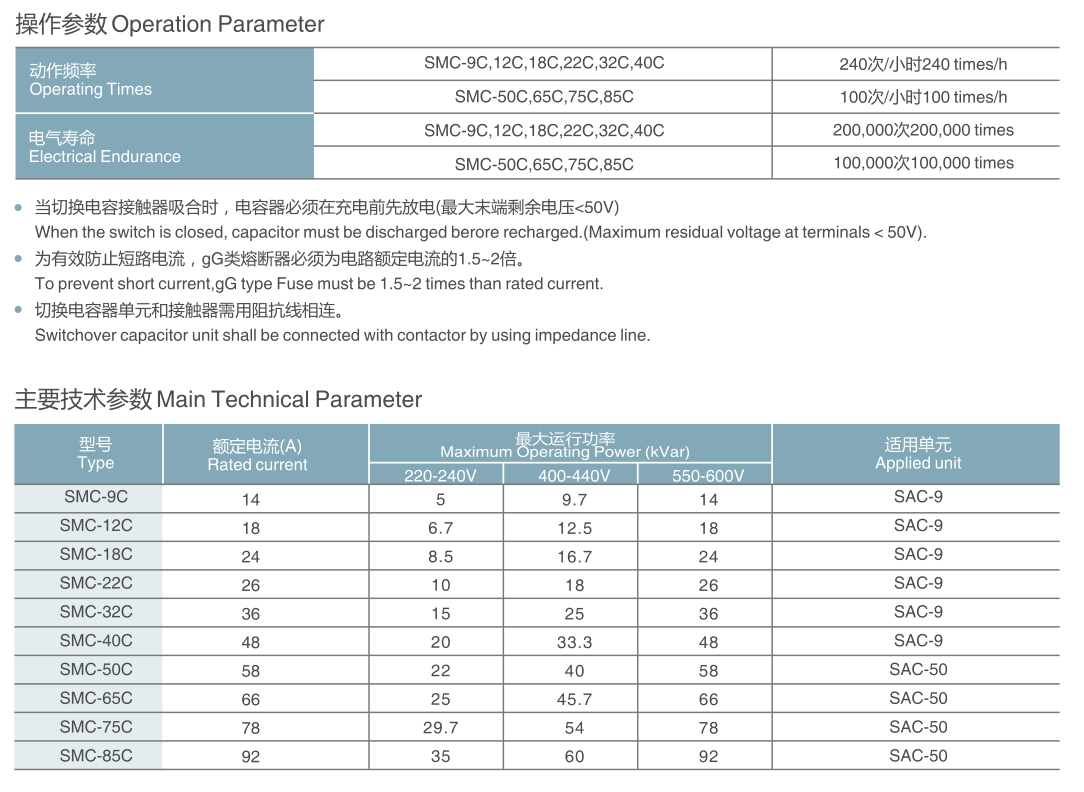

Operation Parameter
1)
When the switch is closed, capacitor must be discharged before recharged. Maximum residual voltage at terminals <50V
2)
To prevent short current, gG type Fuse be 1.5-2 times than rated current
3)
Switchover capacitor unit shall be connected with contactor by using impedance line
Details Images Product Paramenters Shipment photos

Contact us if you need more details on Switchover Capacitor Contactor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Capacitor Contactor、Contactor. If these products fail to match your need, please contact us and we would like to provide relevant information.
