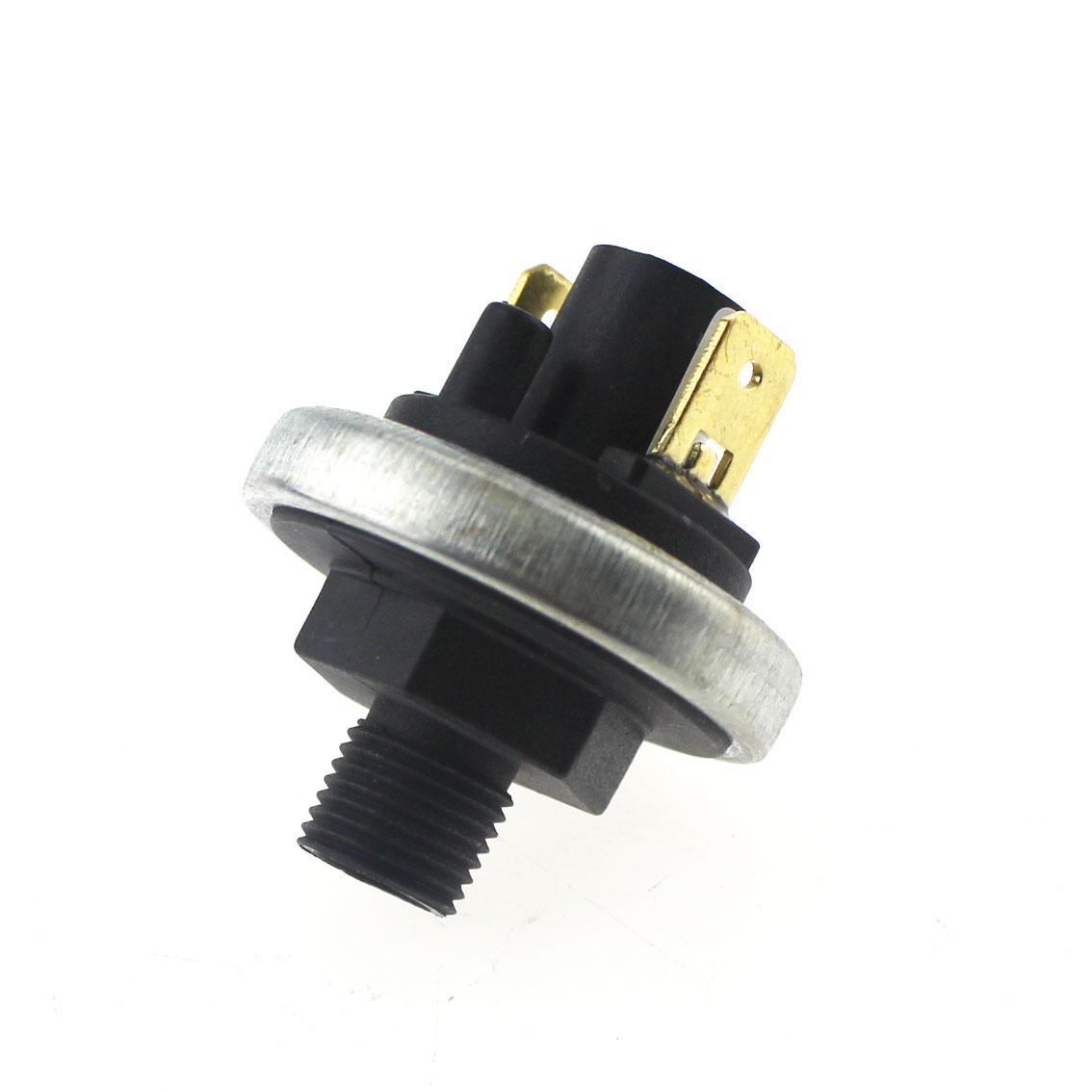

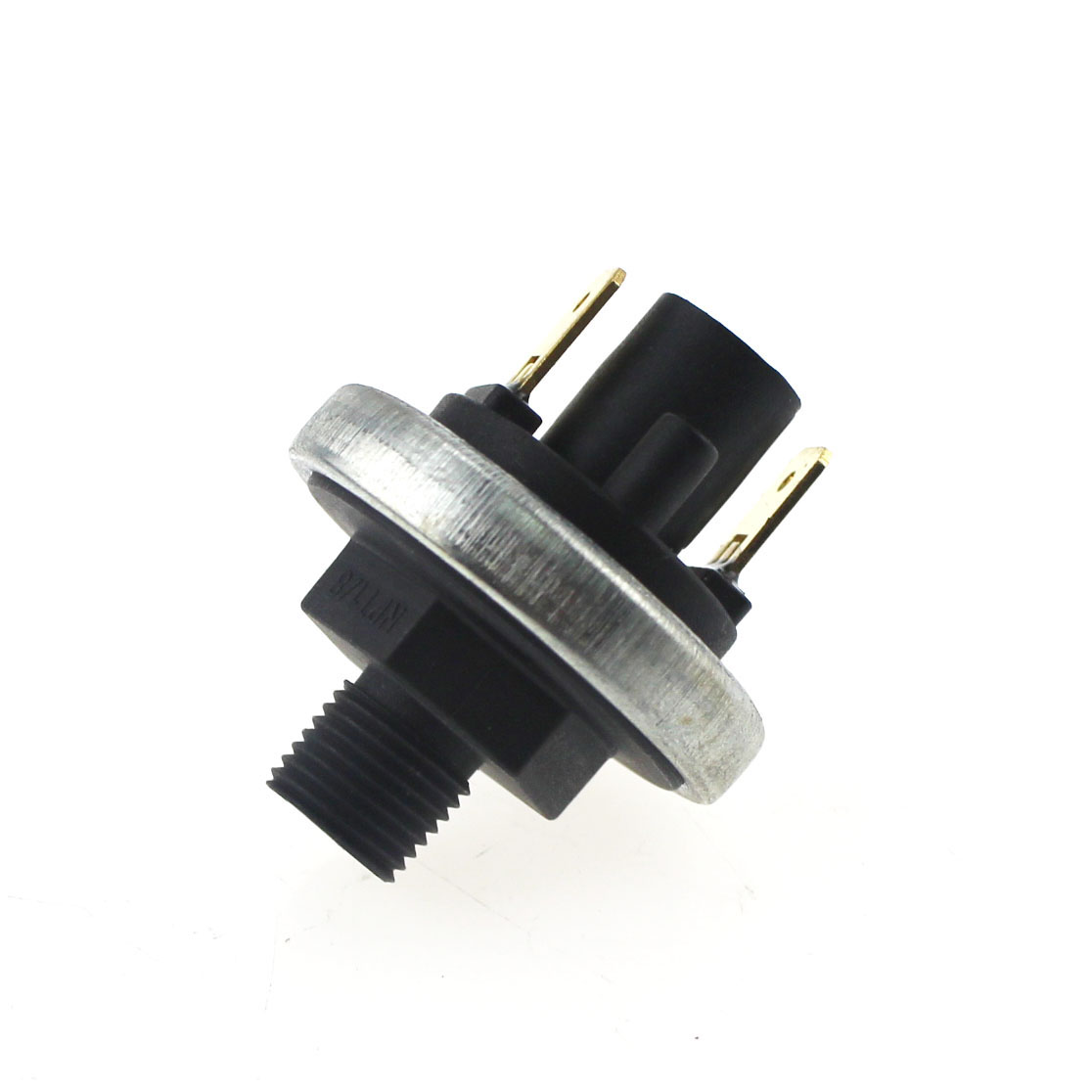

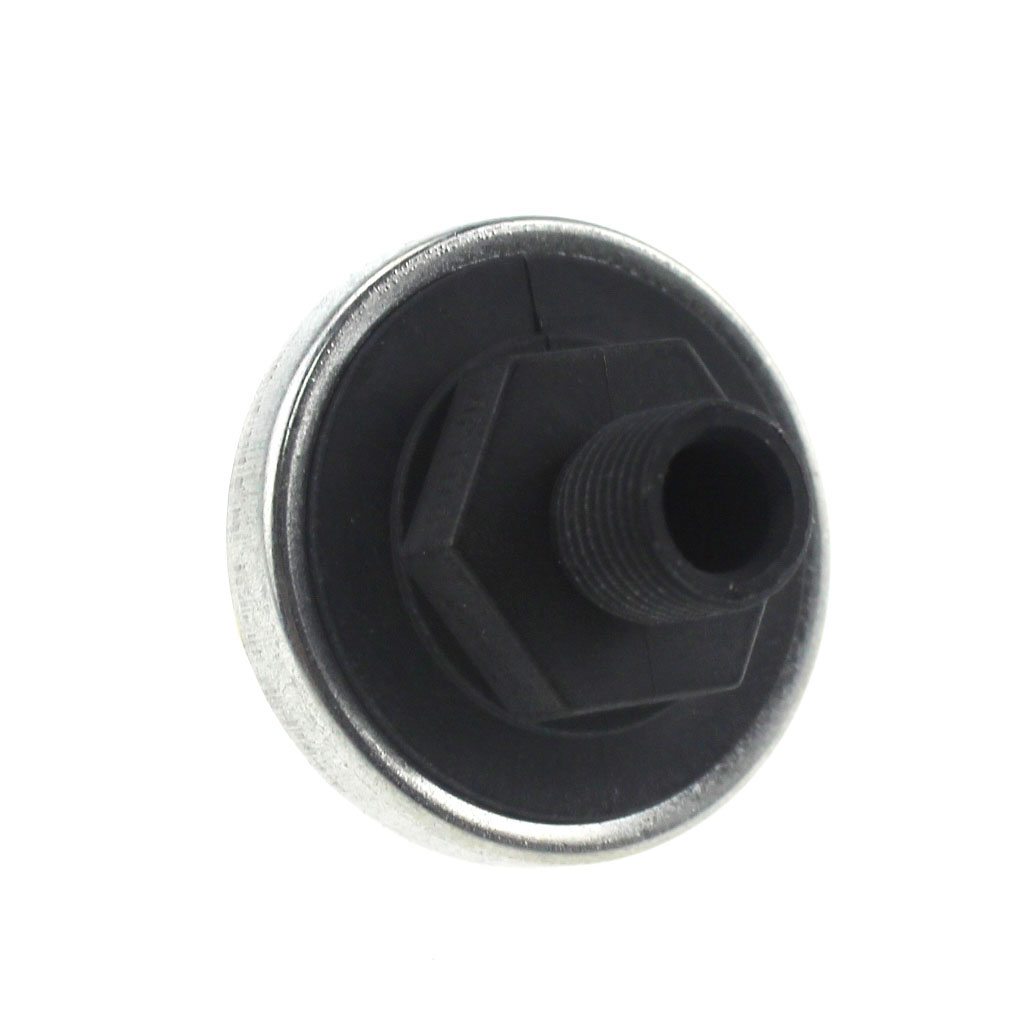

YUMO LFS-03 vacuum pressure switch

Product Description

Product Description   Description LFS-03 can be is applied to detection positive or negative pressure. It can be used as a gauge or differential Pressure Switch with almost no hysteresis. If 2 Switch points are required, 2 pressure Switches with different calibrations should be employed. The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.   Specification
Model LFS-03
Media Non-hazardous gas only
Electrical Function 1 pole NO or 1 pole NC
Electrical Rating 250mA ,250V(Pmax:2.5bar)
Ambient Temperature -10℃ to +90℃
Termimnal 4.8mm×0.8mm copper alloy
Pressure Range -15-800mbar
Maximum Pressure 2500mbar
Connection Inlet 4.0mm for tube connection (Threaded inlet M10×1, NPT1/8 or G1/8 Male)
        Main Products Company Information   FAQ Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
     2) We make the PI for you.
     3) After you confirm the PI, we arrange the order for you after receiving your payment.
     4) After the goods finished, we send the goods out to you and tell you the tracking number.
     5) We will track your goods until you receive the goods. Q:About company?
A:Established in 2007, and have got great success with its professional working team, we has been specialized in digital products for over 10 years, and mainly about HMI, PLC Encoder sensor and other industrial control products. Q:Where is your company located? How can I visit there?
A:Our factory is located in wenzhou, China, about 2 hours ride from wenzhou Airport. All our clients, from home and abroad, are warmly welcome to visit us! Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C. Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply with in 24hrs. Q:What kind of packing do you send?
A:We use high-quality corrugated paper packing box, internal environmental protection buffer material.   Thank you & Now pls send your kindly inquiry ! ^!^

Contact us if you need more details on vacuum pressure switch. We are ready to answer your questions on packaging, logistics, certification or any other aspects about pressure switch、miniature pressure switch. If these products fail to match your need, please contact us and we would like to provide relevant information.
