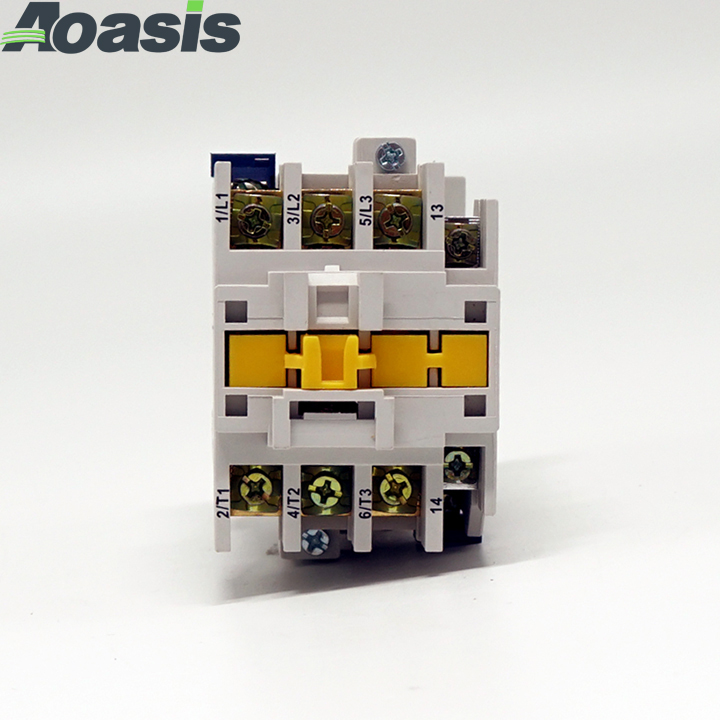

PM12-25 a3 220V 240V 380V 440V coil ac magnetic contactor ac 25A 36v gb14048.4 ac contactor small frame size contactor
Product Description
Product Description PM12 Small frame size contactor Conform to GB14048.4 and IEC/EN 60947-4-1 standard; Compact size with ultra-long electric life and mechanical life Be applicable to circuit of 50HZ/60HZ 5 ranges with 5 different current specification: 10A, 16A, 25A, 40A, 63A Technical Parameters
Ready to Ship: PM12-25 25A Silver contact
Brand: AOASIS
Delivery: TNT, EMS, DHL, UPS. Prepay or Collection acceptable

Company Information

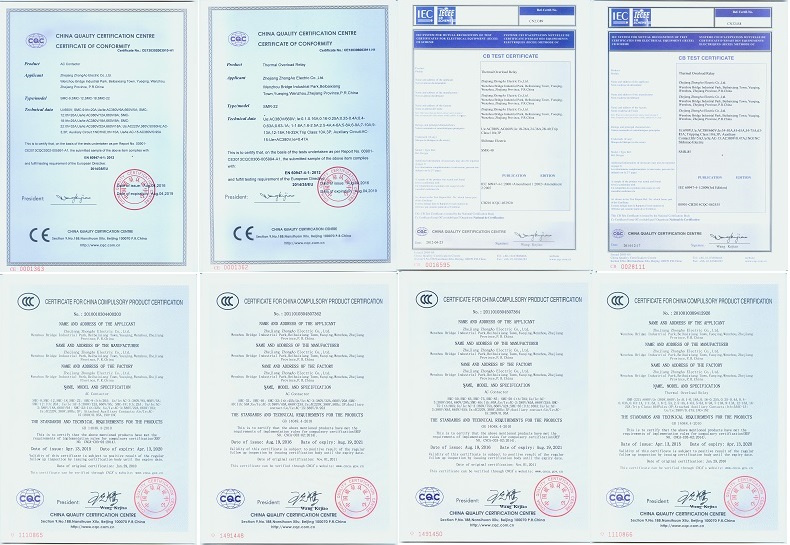

Certifications
FAQ Q 1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipping
Q 2. How's the delivery time ?
A. usually it will take about 25 days for production
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM. Contact us if you need more details on gb14048.4 Ac Contactor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ac Magnetic Contactor、ac3 contactor. If these products fail to match your need, please contact us and we would like to provide relevant information.
Parameter | PM12-10 | PM12-16 | PM12-25 | PM12-40 | PM12-63 | |
Rated operating AC voltage, Ue, V | 230,400,600 | |||||
Rated insulating voltage, Ui, V | 660 | |||||
Rated impulse voltage, Uimp,kV | 6 | |||||
Rated operating current, Ie, application class AC-3(Un<400v) | 10 | 16 | 25 | 40 | 63 | |
Conditioned short-circuit current Inc,A | 1000 | 1000 | 3000 | 3000 | 3000 | |
Rated voltage of magnetizing coil Uc,V | 110,230,400 | |||||
Control voltage range | Actuating | (0.8-11)Uc | ||||
Release | (0.3-0.6)Uc | |||||
Switch wearresistivity, mln | AC-3 | 0.3 | ||||
On frequency per hour | 1200 | |||||
Mechanical wear-resistivity,ml | 5 | |||||
On frequency per hour | 3600 |
Brand: AOASIS
Delivery: TNT, EMS, DHL, UPS. Prepay or Collection acceptable





A. We accept TT,30% deposit and 70% balance before shipping
Q 2. How's the delivery time ?
A. usually it will take about 25 days for production
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM. Contact us if you need more details on gb14048.4 Ac Contactor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ac Magnetic Contactor、ac3 contactor. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : AC Contactor > PM12
