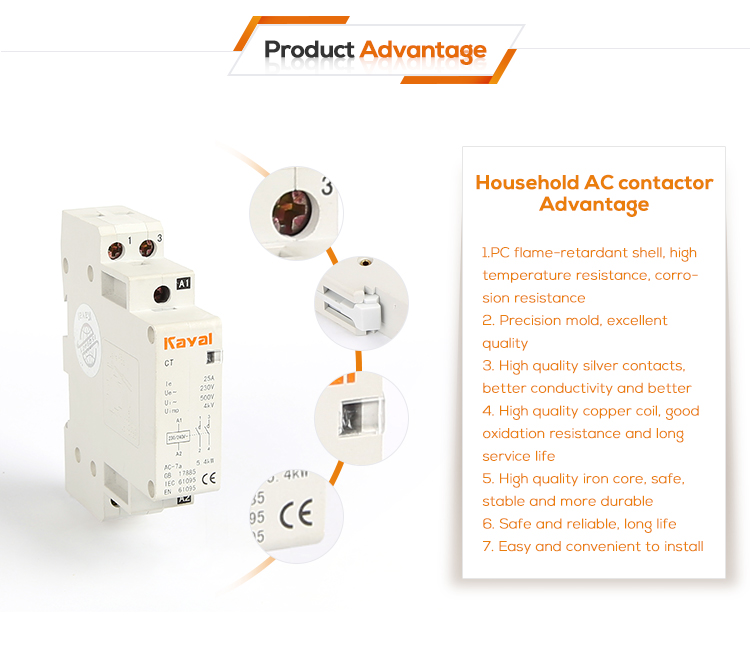

Free Samples! 1 2 3 4 Poles Home Household AC 220v Single Phase Magnetic Modular Contactor with CE ISO
Product Description
Please Attention!
Technical Data
1.Rating
Model | Utilization category | UI(V) | Ue(V) | Conventional heating current | Ie(A) | Controlled power(KW) | |||||||
CT-20 | AC-1 AC-7a | 500 | 230 | 20 | 20 | 4 | |||||||
CT-20 | AC-7b | 500 | 230 | 20 | 9 | 1.2 | |||||||
CT-40 | AC-1 AC-7a | 500 | 400 | 40 | 40 | 40 | |||||||
CT-63 | AC-1 AC-7a | 500 | 400 | 63 | 63 | 40 |
2.Making and breaking capacity
Model | Utilization category | Making and breaking conditions | Electrification time(s) | Interval time(s) | Operating cycle times | ||||||||
Ic/Ie | Ur/Ue | COSø | |||||||||||
CT-20 | AC-1 AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 | ||||||
CT-20 | AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 | ||||||
CT-63 | AC-1 AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 |
3.Conventional heating current under different ambient temperature
Rated current | 40℃ | 50℃ | 60℃ | 70℃ | |
Ie=20A | 20A | 18A | 16A | 14A | |
Ie=40A | 40A | 38A | 36A | 32A | |
Ie=63A | 63A | 57A | 50A | 46A |
