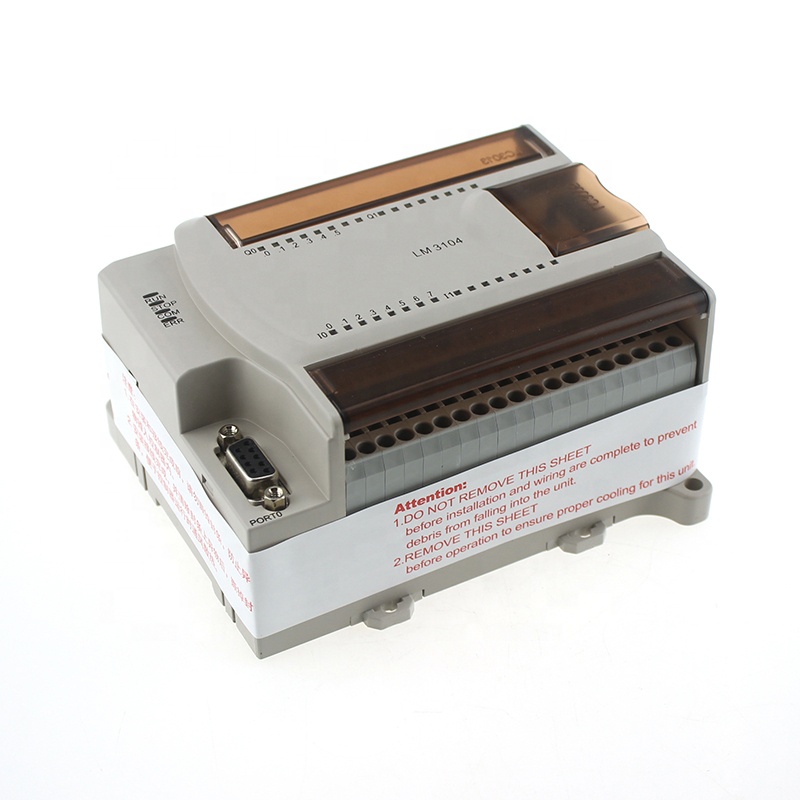

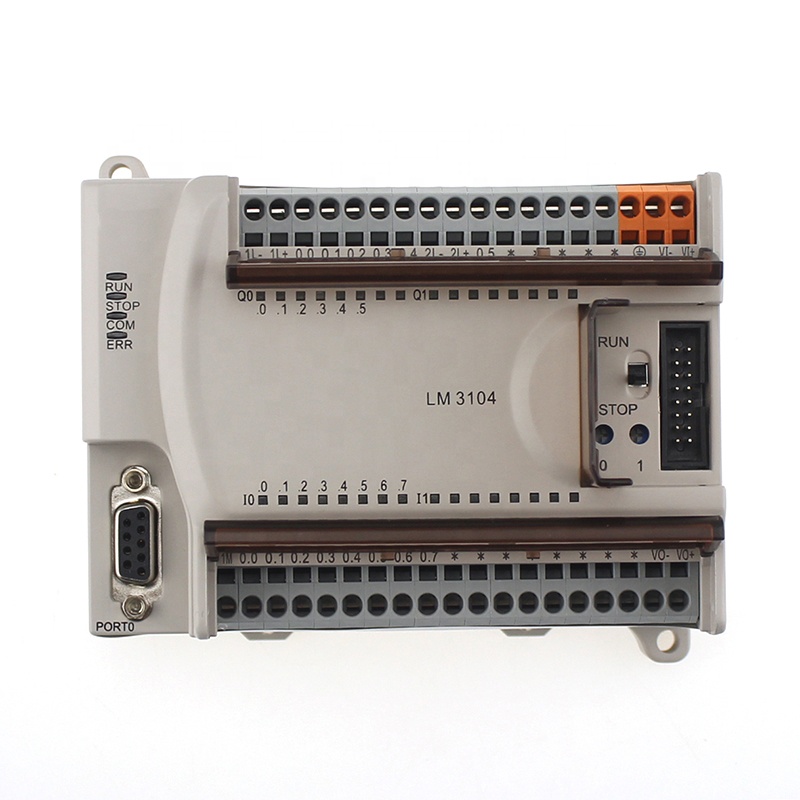

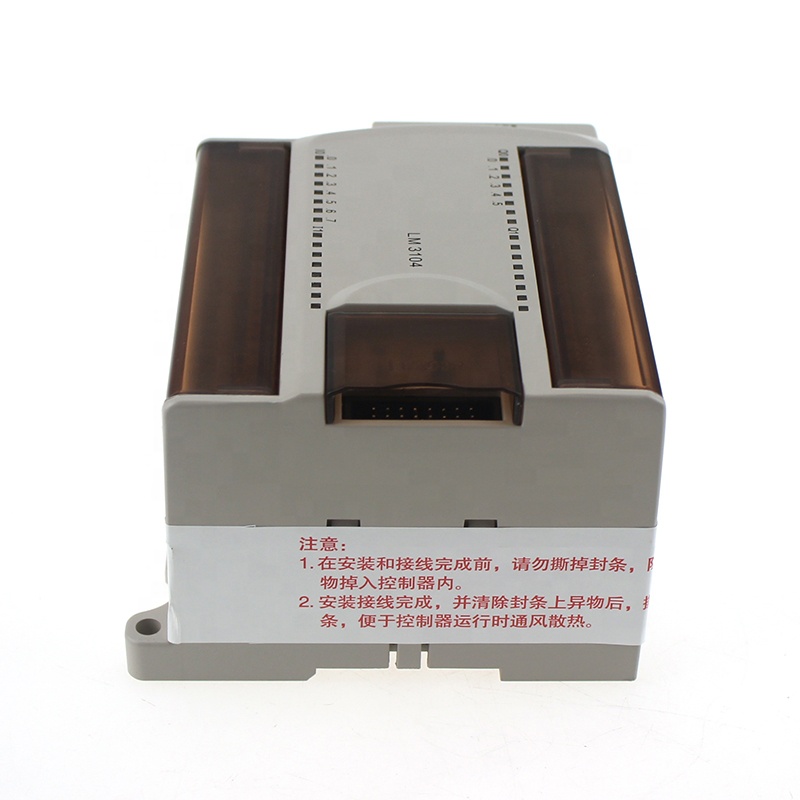

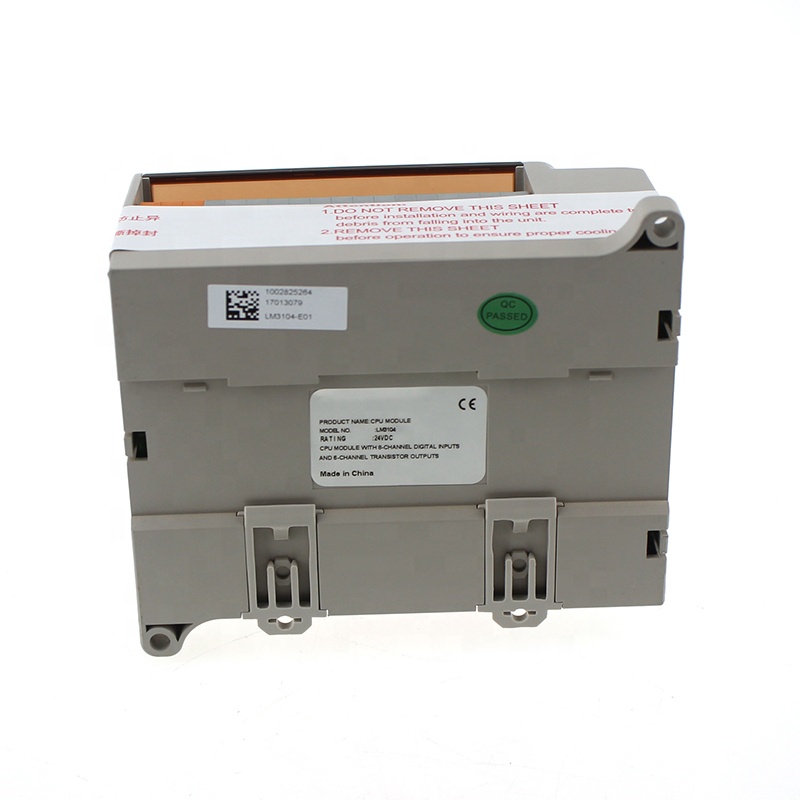

LM-3104 CPU module rated voltage of DC24V 16 point I/O, provide DC24V input / 8 road 8 transistor output processing

Product Description

  Product Description

CPU Features

Input Features

I/O

8 channel 24 VDC input / 8 channel transistor output

Input type

Sink/Source

Expand connections

10

Rated voltage

24V DC

High-speed Counter

NO

Allowed limits

0~30V DC

High Speed Output

NO

Logic 1 signal

15~30V DC minimum current 3mA

Interrupt input

4point

Logic 0 signal

0~5V DC  maximum current1mA

Analog potentiometer

2,setting range:0~255

Input latency

<0.6ms(Rated input voltage)

Program storage space

120 Kbytes

Isolation method

optoelectronic isolation

Data storage space

N area 12Kbytes,M area 5Kbytes

Isolation Group

1group

Retentive area

2K bytes

Isolation voltage

1000V DC

Hardware timer

1(0.1ms~500ms)

Output Features

Software timer

No limits(minimum unit1ms)

Output type

transistor

Counter

No limits(maximum count range:16bit)

Output voltage

24V DC

Arithmetic speedCounter

0.06μs(Boolean)

Transistor voltage drop

<0.5V(Output logic "1", when the current is 1 a)

Power Specifications

On-state resistance (contact resistance)

<0.2Ω

Supply voltage

24V DC

Logic "1", single point maximum output current

0.5A

Allowed limits

20.4~28.8V DC

Current consumption(MAX)

1300mA

Logic "0" maximum leakage current

1mA

Output voltage

24V DC

Common Output current sum

<5A

Allowed limits

22.8~25.2V DC

Isolation method

optoelectronic isolation

external Output current

+24V DC

(Provide for expansion bus)

400mA

Isolation Group

1group

Isolation voltage

1000V DC

+24V DC

(Foreign offers)

400mA

Response time (state "0" to "1" or "1" to "0")

<1ms

+5V DC

(Provide for expansion bus)

1000mA

Physical Features

Dimensions

120mm(L)×80mm(W)×63mm(H)

Short-circuit protection

400mA,24VDC output

Weight

310g

Communication Features

Operating temperature

0~+55℃

Communication Interface

1 RS232

1 RS485

Storage Temperature

-40~+70℃

Communication protocol

MODBUS RTU

Relative humidity

5~95%(Non-condensing)
