LM3230 PLC 8-channel digital input / output 8-channel transistor module

Product Description

  Product Description

Model

PLC3230

Input Features

Output Features

Input channel

8point

Output channel

8point

Input type

Sink/Source

Output type

transistor

Rated voltage

24V DC

Output voltage

24V DC

Allowed limits

0~30V DC

Allowed limits

20.4V DC~28.8V DC

Logic 1 signal

15~30V DC

minimum current3mA

Logic "1" single point of maximum output current

1A

Logic 0 signal

0~5V DC

maximum current1mA

Logic "0" the maximum Leakage Current

1mA

Input latency

<1ms(Rated input voltage)

Isolation method

optoelectronic isolation

Isolation method

optoelectronic isolation

Isolation Group

2group

Isolation Group

2group

Isolation voltage

1000V DC

Isolation voltage

1000V DC

Physical Features

common port current

<4A

Dimensions

72mm(L)×80mm(W)×63mm(H)

On state resistance (contact resistance)

<0.2Ω

Weight

120g

Short-circuit protection

Externally supplied

power consumption

+24VDC(Expansion bus offers)

0mA

+24VDC(Externally supplied)

Input 20 mA



Calculated based on the actual load

Response time

State “0” to “1”

<1ms

+5VDC(Expansion bus offers)

90mA

State “1” to “0”

<1ms

Operating temperature

0~+55℃

Transistor Drop Voltage

<0.5V(Output logic "1", the current is 1 a)

Storage Temperature

-40~+70℃

Relative humidity

5%~95%,Non-condensing

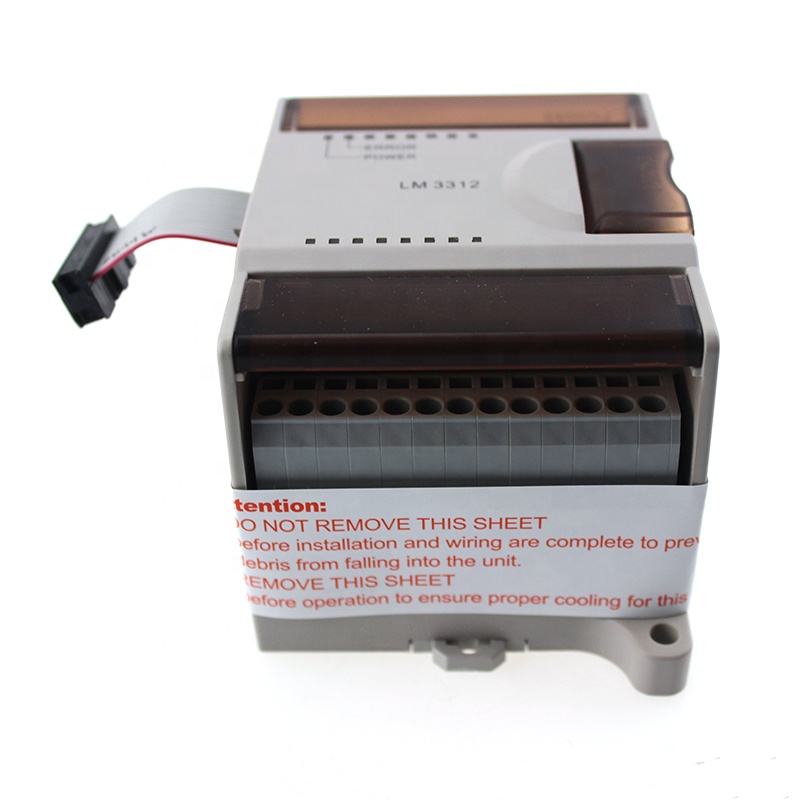

  Detailed Images   Main Products Company Information   FAQ Q:How to order our product?
