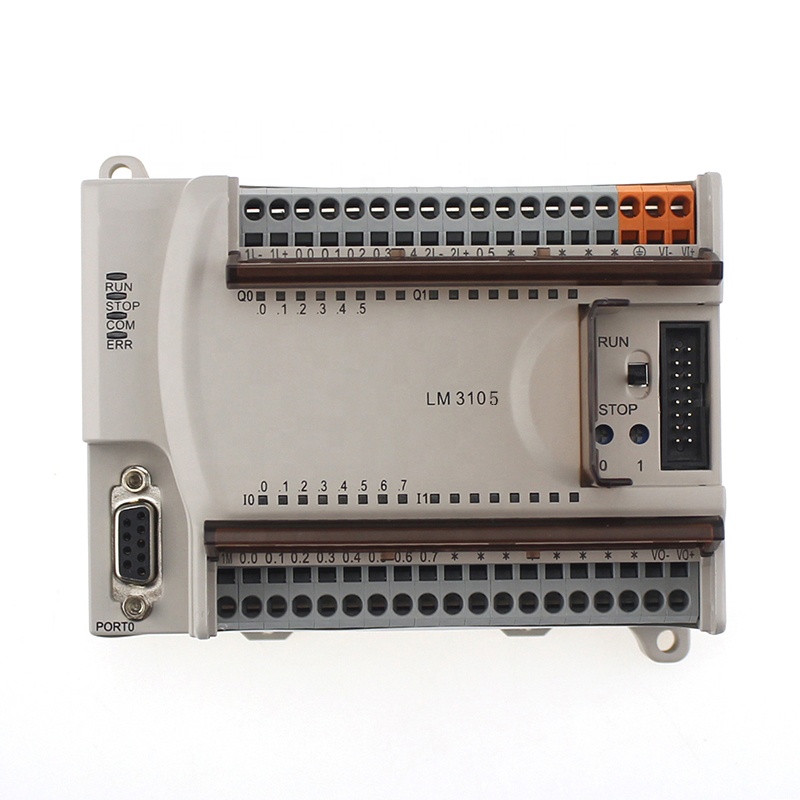

LM3105 CPU module working voltage of 220v Ac, bringing 16 point I/O, eight DC24V input / 8 road Relay output processing

Product Description

    Product Description

CPU Features

Input Features

I/O

8 24 VDC input / 8 road Relay output

Input type

Sink/Source

Expand connections

10

Rated voltage

24V DC

High-speed Counter

NO

Allowed limits

0~30V DC

High Speed Output

NO

Logic 1 signal

15~30V DC,minimum current3mA

Interrupt input

4point

Logic 0 signal

0~5V DC, maximum current1mA

Analog potentiometer

2,0~255

Input latency

<0.6ms(Rated input voltage)

Program storage space

120Kbytes

Isolation method

optoelectronic isolation

Data storage space

N area12Kbytes,

M area5Kbytes

Isolation Group

1group

Retentive area

2K bytes

Isolation voltage

1000V DC

Hardware timer

1(0.1ms~500ms)

Output Features

Software timer

No limits(minimum unit1ms)

Output type

Relay

Counter

No limits(maximum count range:16bit)

Output voltage

24V DC/24~230V AC

Arithmetic speed Counter

0.06μs(Boolean)

Allowed limits

5~30V DC/5~250V AC

Power Specifications

Common Output current sum

<5A

Supply voltage

220V AC@50Hz

Output switching capacity

2A,Resistive load

Allowed limits

187~264V AC@50Hz

Minimum Load

10mA(Contact voltage 5V DC/5V AC)

Current consumption(MAX)

120mA

Over current protection

NO

Output voltage

24V DC

Isolation voltage between coil and contacts

3000V AC,1minute,Leakage Current 1mA

Allowed limits

22.8~25.2V DC

Isolation voltage

750V AC,1minute,Leakage Current 1mA

Output current

+24V DC

(Foreign offers)

400mA(Isolation voltage1000VDC)

Isolation Group

2group

Contact Switch delay time

<10ms

+24V DC

(Provide expansion bus)

400mA

Relay mechanical life

NO loads, up to 10,000,000;

2A rated resistive load, up to 100,000 times

+5V DC

(Provide expansion bus)

1000mA

Physical Features

Dimensions

120mm(L)×80mm(W)×63mm(H)

Short-circuit protection

800mA,24VDC output

Weight

380g

Communication Features

Operating temperature

0~+55℃

Communication Interface

1RS232

1RS485

Storage Temperature

-40~+70℃

Communication protocol

MODBUS RTU

Relative humidity

5~95%(Non-condensing )
