High Quality LAY5 Push Button, High Quality LAY5 Push Button, LAY5 Push Button Details Suppliers in China

Home > Products > Push Button > LAY5 Push Button > LAY5-BJ21 2 Position stay put selector black push button switch

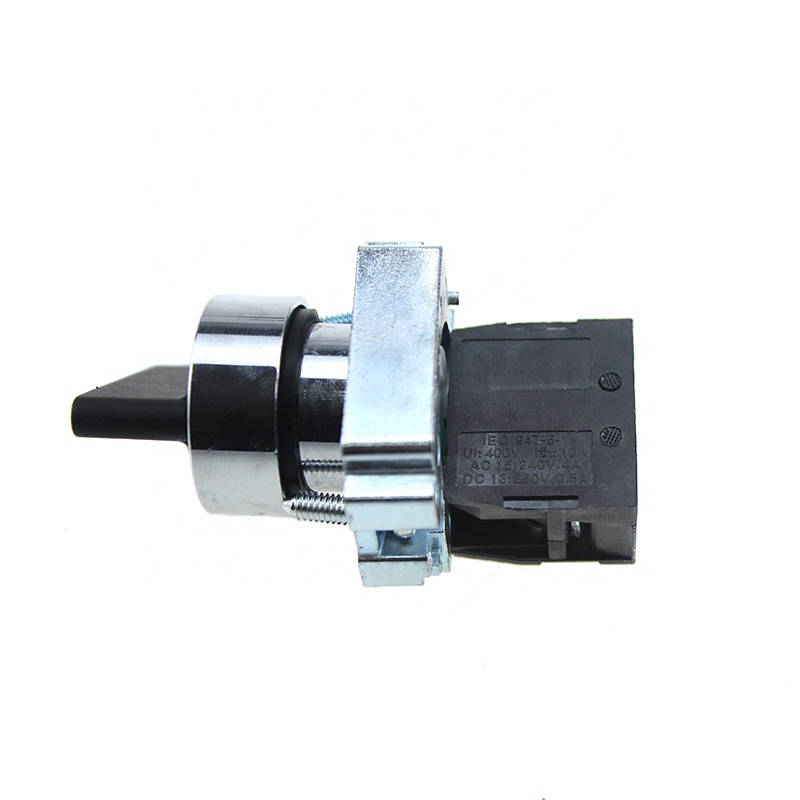

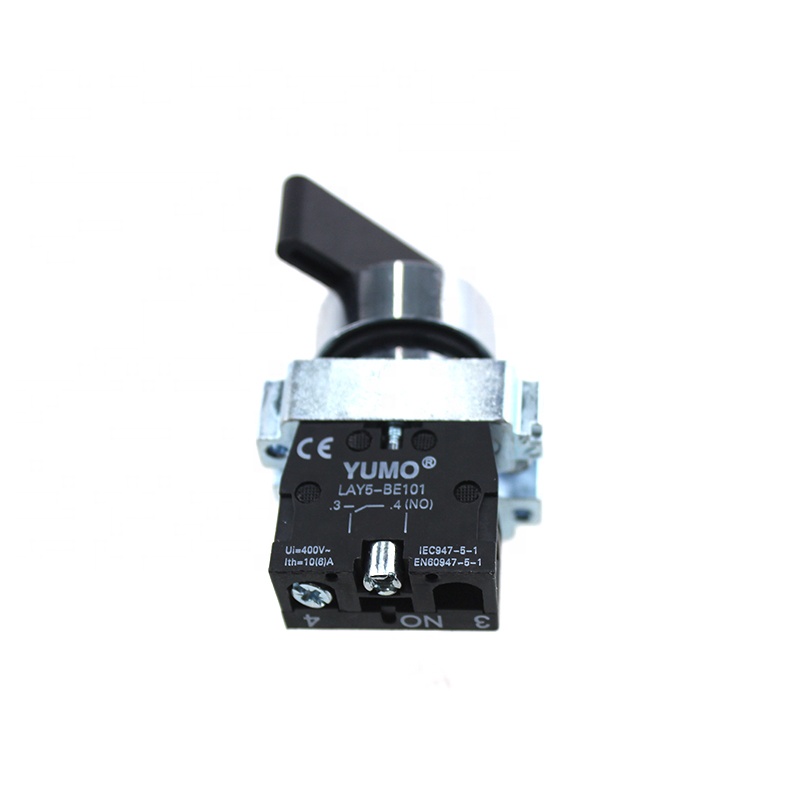

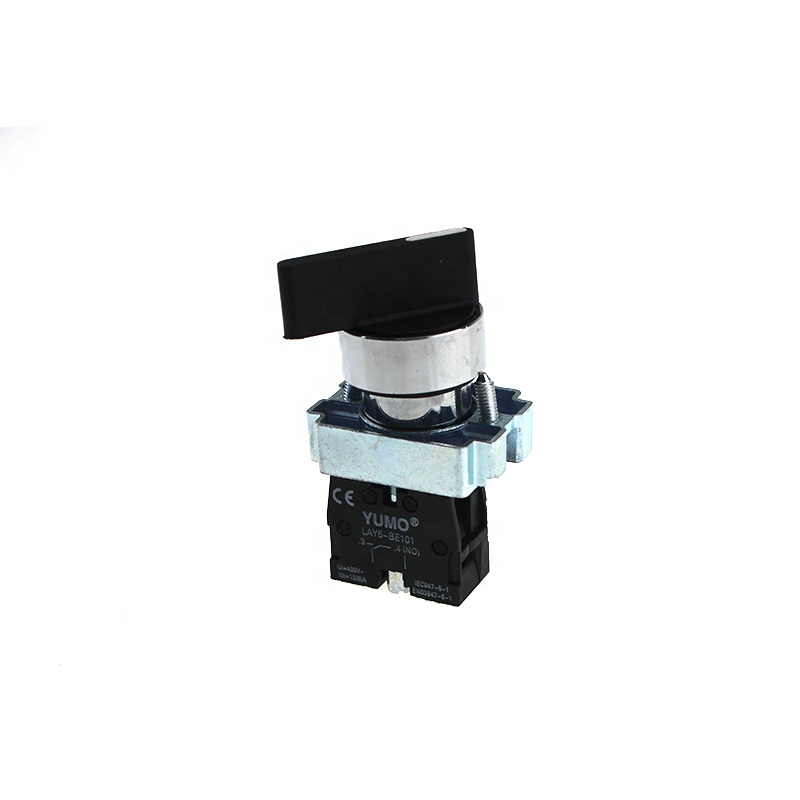

LAY5-BJ21 2 Position stay put selector black push button switch

Product Description

LAY5-BJ21 2 Position stay put selector black Push Button Switch Product Description Product Application The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.   Work environment Surrounding temperature:-25℃~+55℃; Air relative humidity:≤85%. It can be normally work under following condition: Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h; Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65. Altitude:≤2000m
Main technical parameter
Basic technical parameter of button
Rated insulation
AC 600V(50Hz/60Hz)
Conventional heating current
10A
Insulation resistance
≥50MΩ
Contact resistance
≤25MinΩ
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Electrical life
500x10000
pushbutton
25x10000
selector switch

Description Contact Circuit Color Sign Type  Contour

Long handle

N/O 2 Position stay put LAY5-BJ21

2 Position
spring return
LAY5-BJ41
N/O+N/C 2 Position stay put LAY5-BJ25
2 Position
spring return
LAY5-BJ45
  Detailed Images Main Products About us   FAQ Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
     2) We make the PI for you.
     3) After you confirm the PI, we arrange the order for you after receiving your payment.
     4) After the goods finished, we send the goods out to you and tell you the tracking number.
     5) We will track your goods until you receive the goods. Q:About company?
A:Established in 2007, and have got great success with its professional working team, we has been specialized in digital products for over 10 years, and mainly about HMI, PLC Encoder sensor and other industrial control products. Q:Where is your company located? How can I visit there?
A:Our factory is located in wenzhou, China, about 2 hours ride from wenzhou Airport. All our clients, from home and abroad, are warmly welcome to visit us! Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C. Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply with in 24hrs. Q:What kind of packing do you send?
A:We use high-quality corrugated paper packing box, internal environmental protection buffer material.   Thank you & Now pls send your kindly inquiry ! ^!^

Contact us if you need more details on 2 Position selector. We are ready to answer your questions on packaging, logistics, certification or any other aspects about push button selector、stay put selector. If these products fail to match your need, please contact us and we would like to provide relevant information.
