LR-B-D25L30 8mm diameter shaft encoder Hold type aluminum flexible coupling

Product Description

LR-B-D25L30 8mm diameter shaft encoder Hold type aluminum flexible coupling Product Description Product characteristics   Slotted and fully integrated metal wound coupling in the bar Using super-hard aluminum with the highest strength among aluminum alloys Slotted leaf springs allow eccentricity, eccentricity, and axial deviation Product size
Size control table
Proiect type

D

(mm)

L

(mm)

D1-D2

(mm)

M

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

Screw tightening torque(n.m)

LR-B-D15L20 15 20 3-6.35 M2.5 3.5 2 0.4 0.8
LR-B-D19L25 19 25 4-8 M3.0 4 2 0.4 1.2
LR-B-D25L30 25 30 5-12 M3.0 4.5 2 0.4 1.2
LR-B-D30L35 30 35 8-16 M4.0 5 2.5 0.5 2.5
LR-B-D35L40 35 40 8-20 M4.0 6 2.5 0.5 2.5
LR-B-D40L45 40 45 10-25  M5.0 8 3.5 0.6 5
  Technical parameter
Proiect type

Maximum shaft hole

(mm)

Rated torque

(n.m)

Maximum torque

(n.m)

Maximum speed

(rpm)

Moment of inertia

(Kg.m²)

Allow eccentricity

(mm)

Allowable declination

(°)

LR-B-D15L20 8 0.5 1 30000 2.5*10-7

0.05

0.5
LR-B-D19L25 10 1 2 25000 5.8*10-7 0.05 0.5
LR-B-D25L30 12 1.5 3 18000 1.8*10-6 0.05 0.5
LR-B-D30L35 18 2 4 16000 4.7*10-6 0.05 0.5
LR-B-D35L40 22 3 6 14000 1.1*10-5 0.05 0.5
LR-B-D40L45 28 6 12 12000 2.3*10-5 0.05 0.5

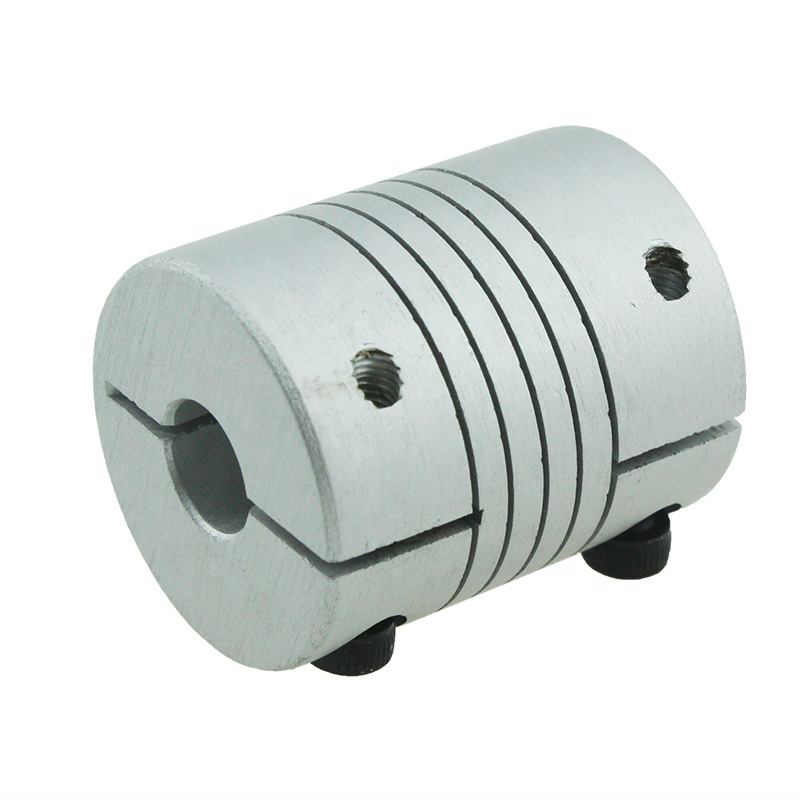

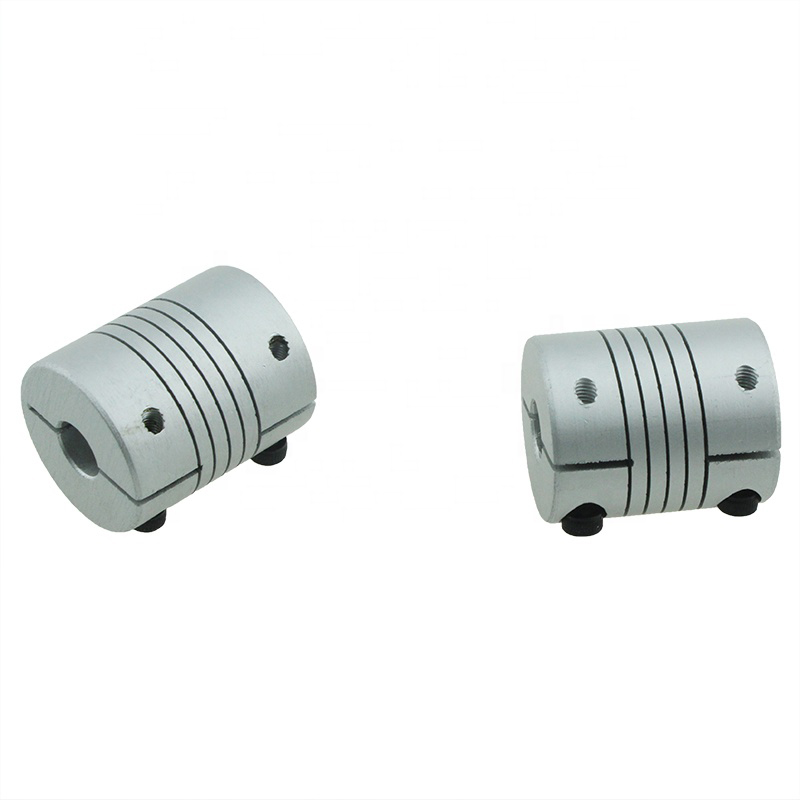

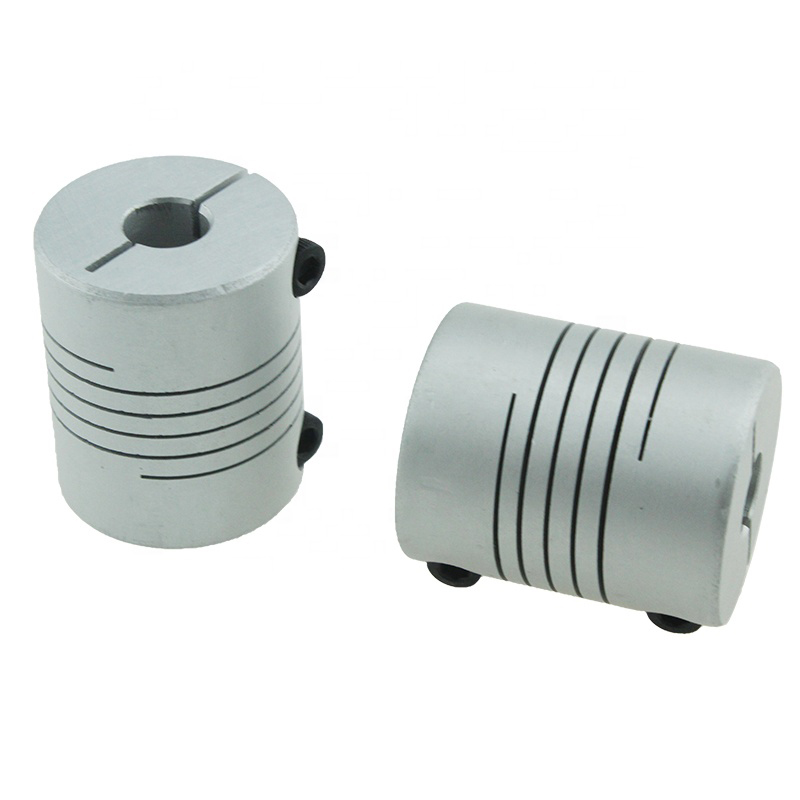

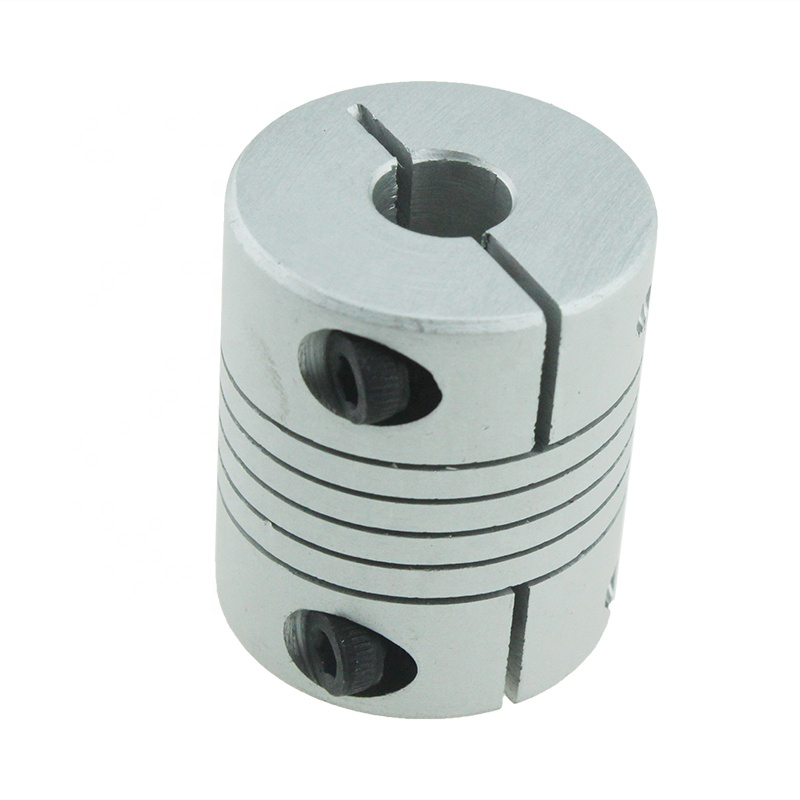

  Product Pictures   Main Products Company Information   FAQ Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
     2) We make the PI for you.
     3) After you confirm the PI, we arrange the order for you after receiving your payment.
     4) After the goods finished, we send the goods out to you and tell you the tracking number.
     5) We will track your goods until you receive the goods. Q:About company?
A:Established in 2007, and have got great success with its professional working team, we has been specialized in digital products for over 10 years, and mainly about HMI, PLC Encoder sensor and other industrial control products. Q:Where is your company located? How can I visit there?
A:Our factory is located in wenzhou, China, about 2 hours ride from wenzhou Airport. All our clients, from home and abroad, are warmly welcome to visit us! Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C. Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply with in 24hrs. Q:What kind of packing do you send?
A:We use high-quality corrugated paper packing box, internal environmental protection buffer material.   Thank you & Now pls send your kindly inquiry ! ^!^
