Excellent quality factory price multi function jump electric motor magnetic starter

Product Description







       Three Phase Motor Standard Magnetic Starter factory price LE1-25 magnetic starter




Product Description

for far distance making and breaking circuit and frequent start and control motor. It has the

features of small volume, light, weight, low power consumption, high efficiency, safe and reliable

perfomance etc.

SPECIFICATION

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Maximum power AC3 duty(K W) Rated current (A) Type of enclosure Code Number Suitable Thermal Relay(A)
220V 230V 380V 400V 415V 440V 500V 660V 690V LL(Long life) NL(3) (normal life)
1.1 2.2 22 22 ... ... 6 ... ... LE1 EC 135 LE1 EC135
2.2 4 4 4 5.5 5.5 9 IP42 IP65

LE1 D094...

LE1 D093...

... LR2 D1312
3 5.5 5.5 5.5 7.5 7.5 12 IP42 IP65

LE1 D124...

LE1 D123...

LE1 D094...

LE1 D093...

LR2 D1314
4 7.5 9 9 10 10 18 IP42 IP65

LE1 D188...

LE1 D185...

LE1 D124...

LE1 D123...

LR2 D1316
5.5 11 11 11 15 15 25 IP42 IP65

LE1 D258...

LE1 D255...

LE1 D188...

LE1 D185...

LR2 D1321
7.5 15 15 15 18.5 18.5 32 IP55 LE1 D325... LE1 D255... LR2 D1322 LR2 D2353
11 18.5 22 22 22 30 40 IP55 LE1 D405... LE1 D325... LR2 D2355
15 22 25 30 30 33 50 IP55 LE1 D505... LE1 D405... LR2 D3353   LR2 D3355
18.5 30 37 37 37 37 65 IP55 LE1 D655... LE1 D505... LR2 D3357 LR2 D3359
22 37 45 45 55 45 80 IP55 LE1 D805... LE1 D655... LR2 D3363 LR2 D3365
25 45 45 45 55 45 95 IP55 LE1 D955... LE1 D805... LR2 D3365



Enclosure LE-D09 and D12

Double insulated, protected to

IP 429 (3) or to IP659(4)

LE-D18 and D25

Double insulated, protected to

IP 427 (3) or to IP577(4)

LE-D32...D25 Matel, IP 55 to IP 559

Control(2 pushbuttons mounted

on enclosure cover

LE-D09...D95

1 green Start Button "1",

1 red Stop/Reset button "O"

Connections LE-D09...D95

Pre-wired power and contorl

circuit connections

Standard control circuit voltages
Voltages 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7

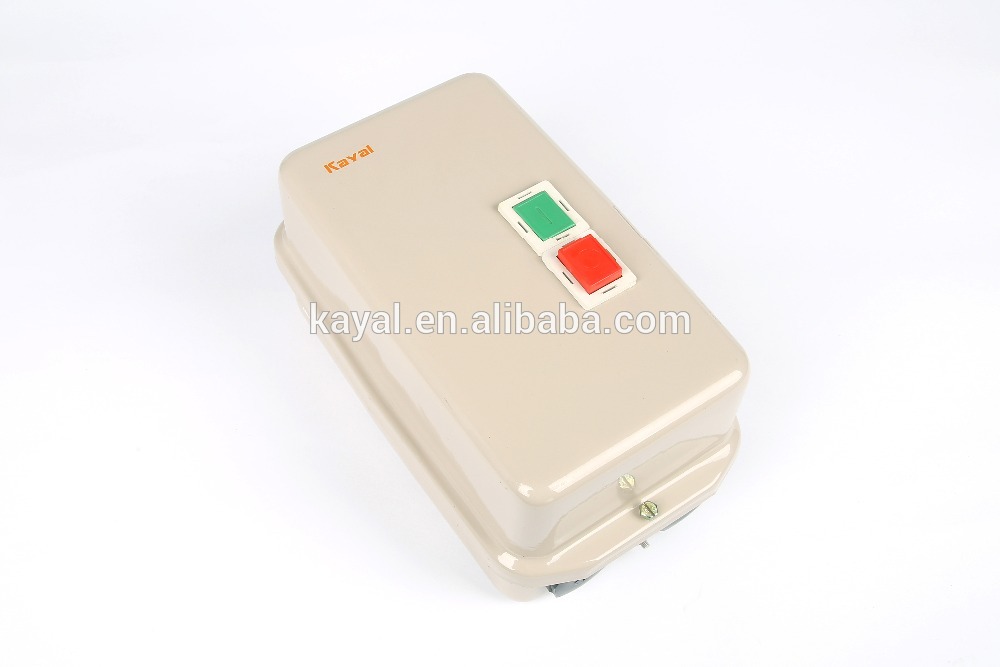

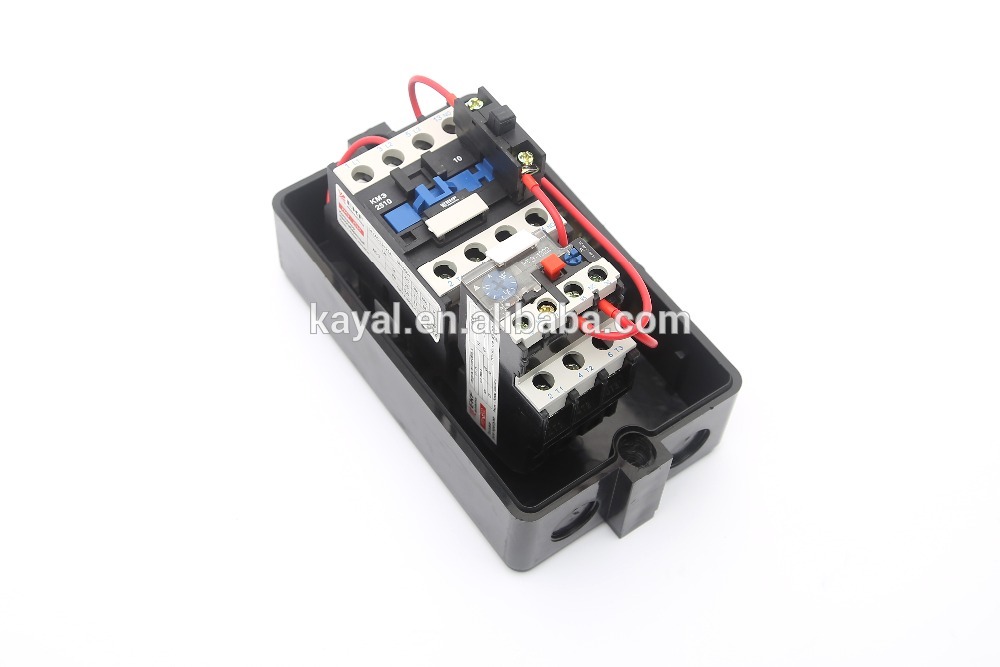

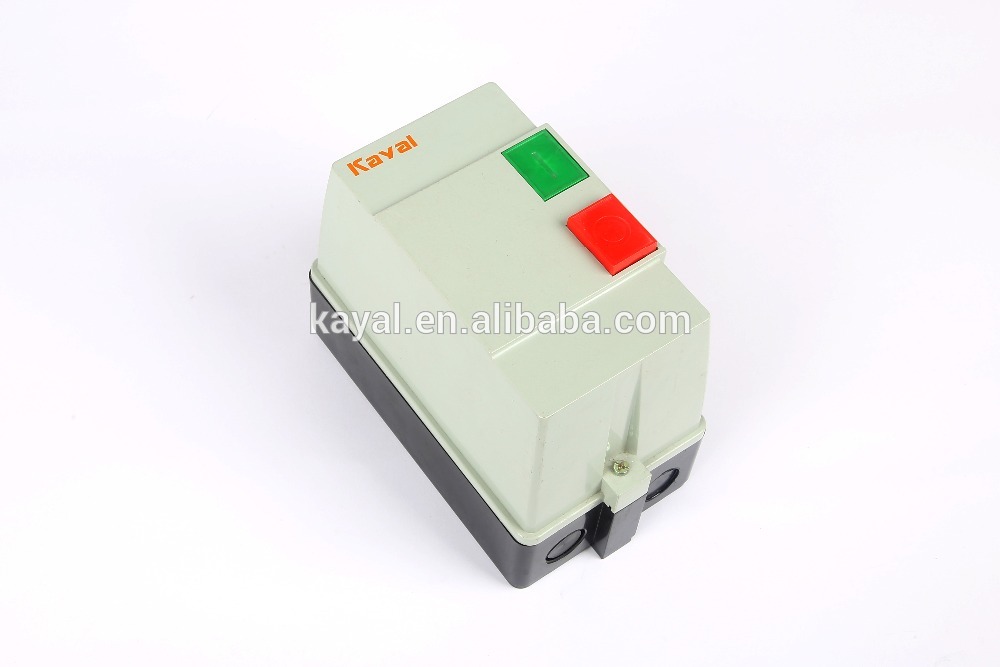

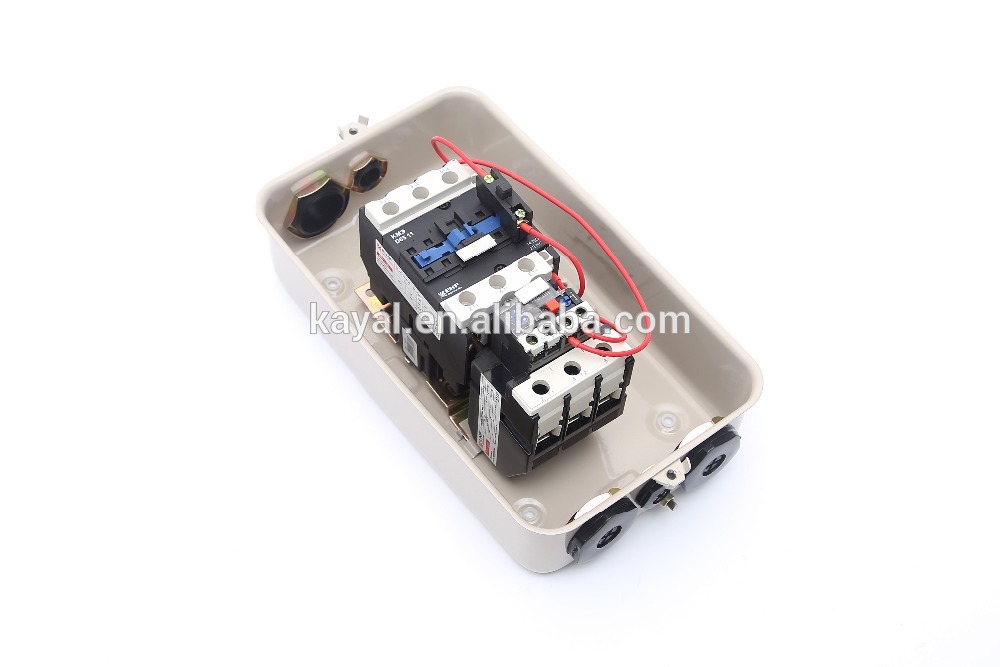

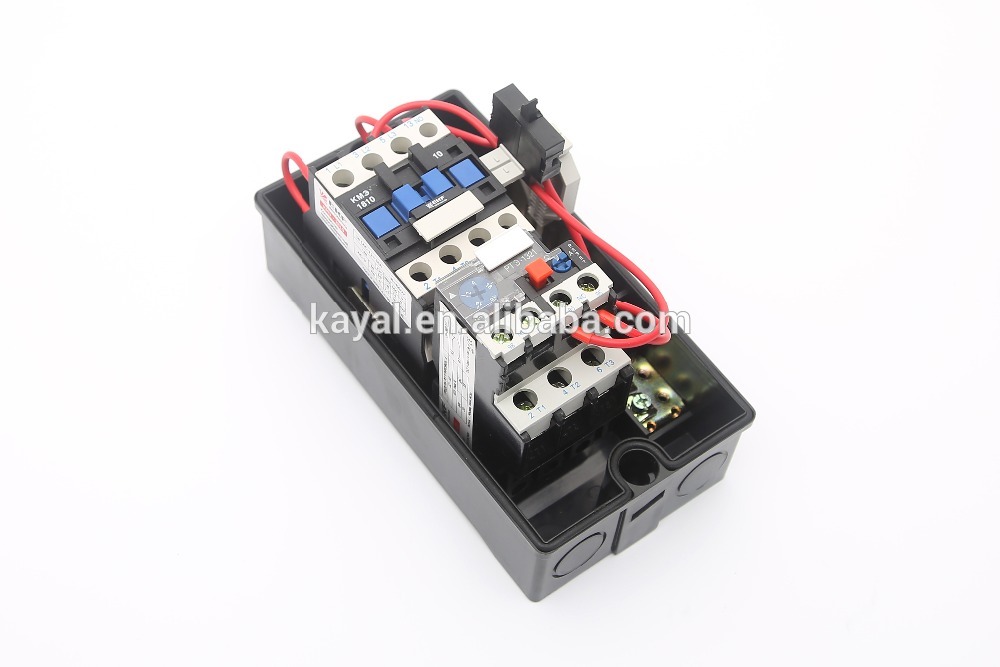

PRODUCT PICTURE

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
