Widely use new type electrical UL/CE/CCC air conditioning normally closed contactor

Product Description


Please Attention



Product Description

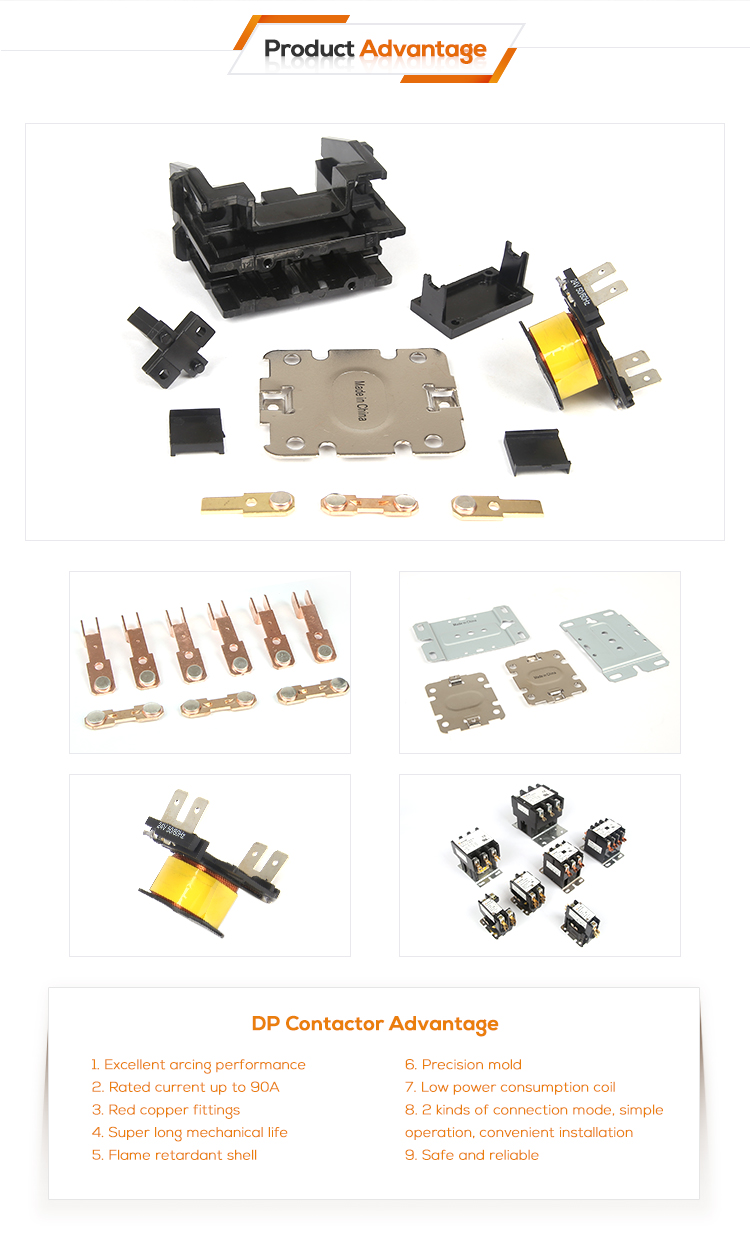

1/2POLE Contactors(20A THRU 40A)
Straight-Through Wiring, Replaces 1-1.5 Pole Devices Used Primarily in Residential Central Air Conditioning
1).Replaces many type 117 contactors used by OEM's
2).Universal style mouting bracket fits existing mounting holes
3).Screw terminals and 1/4 quick connect terminals for easy installation.

Product name Widely use new type electrical UL/CE/CCC  air conditioning normally closed contactor
Temperature Range -40°F to 150°F
Mechanical Life(No load) Conforms to UL and ARI Specifications
Electrircal Life

Conforms to UL and ARI Specifications 94-388 thru 94-390

achieve 200,000 Cycles,make LRA at.5pf, break 125% of

FLA at. 75pf at rated voltage,10,000 cycles make and brek

LRA at.5pf rated voltage 94-394 thru 94369 achieve

100,000 cycles, make LAR at 5pf at rated voltage

6.000 cycles make and break LEA at 5pf rated voltage

Weight(approximate) 9.25 oz
Coils Frequency 50/60HZ
Coil Insulation Class B(130°)
Termination Screw and Double 1/4 Q.C.
Operate 85% of nominal coil voltage;
110% maximum safe opreate
Duty Cycle Continuous
Coil data
Steveco number Volatge Ress DC Current Nominal Max. Inrush
30 Amp 40Amp AC OHMS MA VA VA
C2-388  C2-394 24 16.5 208 5 20
C2-389  C2-395 120 420 42 5 20
C2-390  C2-396 208/240 1825 21 5 20
Contact Ratings
Type Voltage FLA LRA RES
C2-388 thru C2-390         277 30 150 40
480 30 75 40
600 30 50 40
C2-384 thru C2-396        277 40 200 50
480 40 100 50
600 40 80 50
