lc1-d1810 electrical ac contactor
Product Description
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
3P+NC |
APPLICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Ac Contactor is suitable for using in the circuits up to the rated vltage 660v ac 50/60hz rated current up to 95a,for making ,frequently starting and machine interlocking device,it becomes the delay the contactor,mechanical interlocking contactor Star-delta Starter,with the Thermal Relay , it is combined into the eletromagnetic Starter.the contactor is roduced according to IEC947-2,VDE 0660&BS5452.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------OPERATION PRINCIPLE
OVERALL AND MOUNTING DIMENSIONS(Unit:mm)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

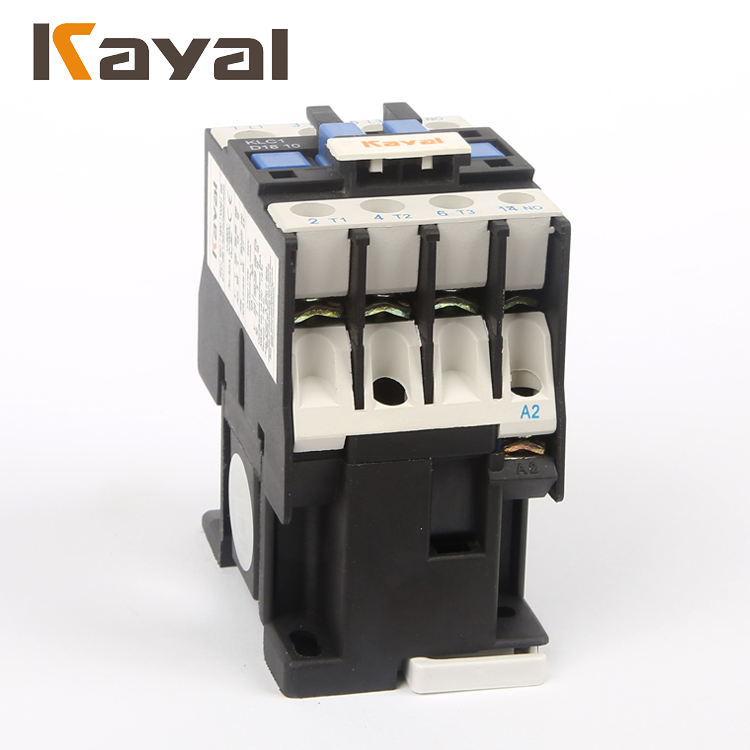

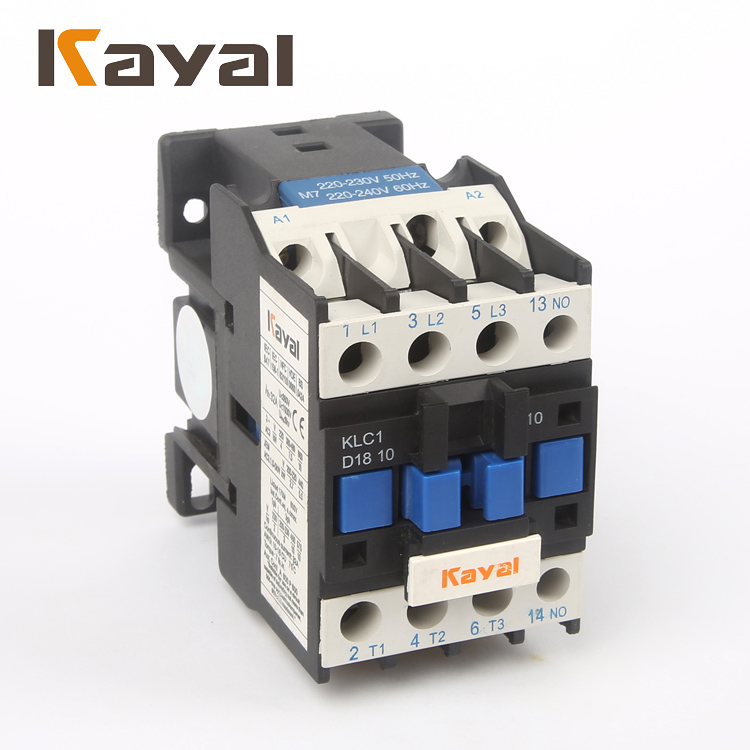

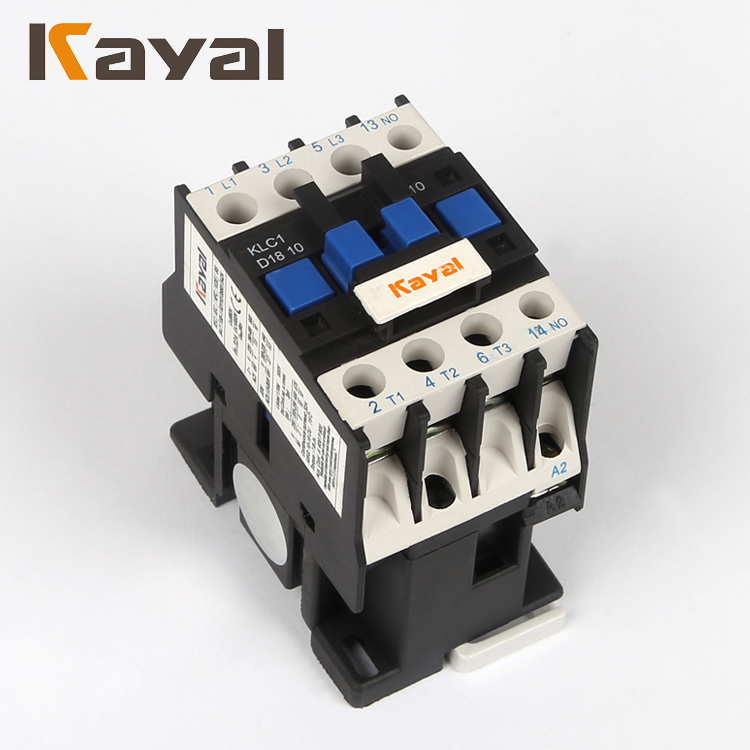

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
