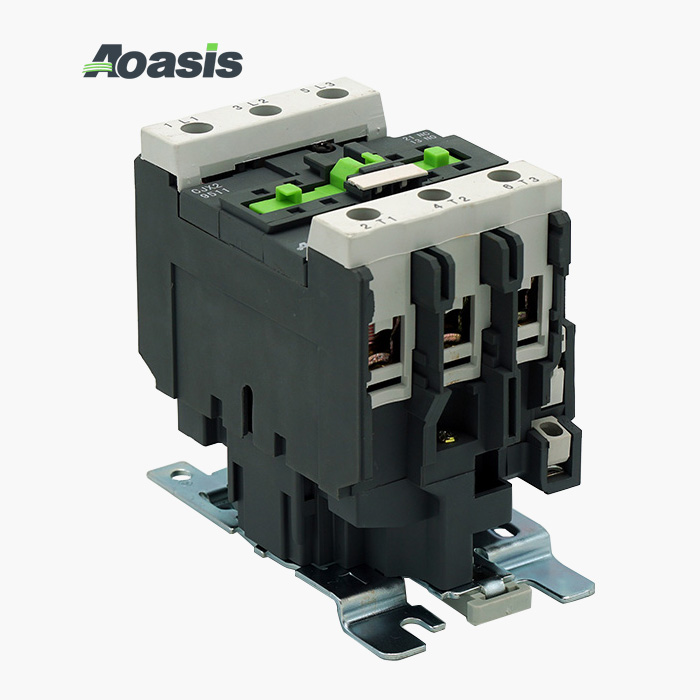

CJX2-9511 lc1 95 amp AC3 AC4 AC Contactor 3 4 pole 36v 220V 230V 380V 400V 440V coil magnetic contact ac contactor

Product Description

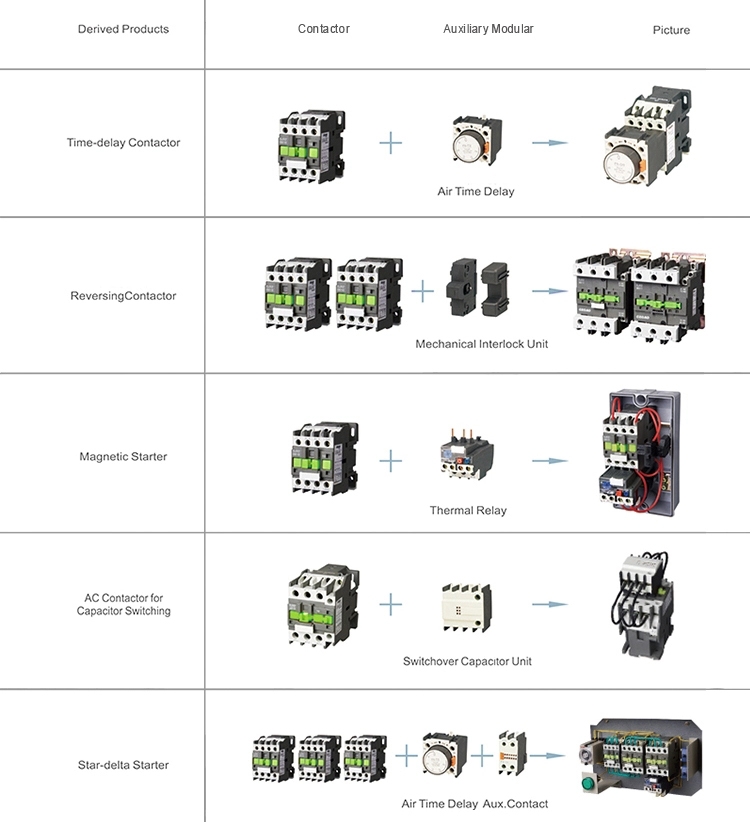

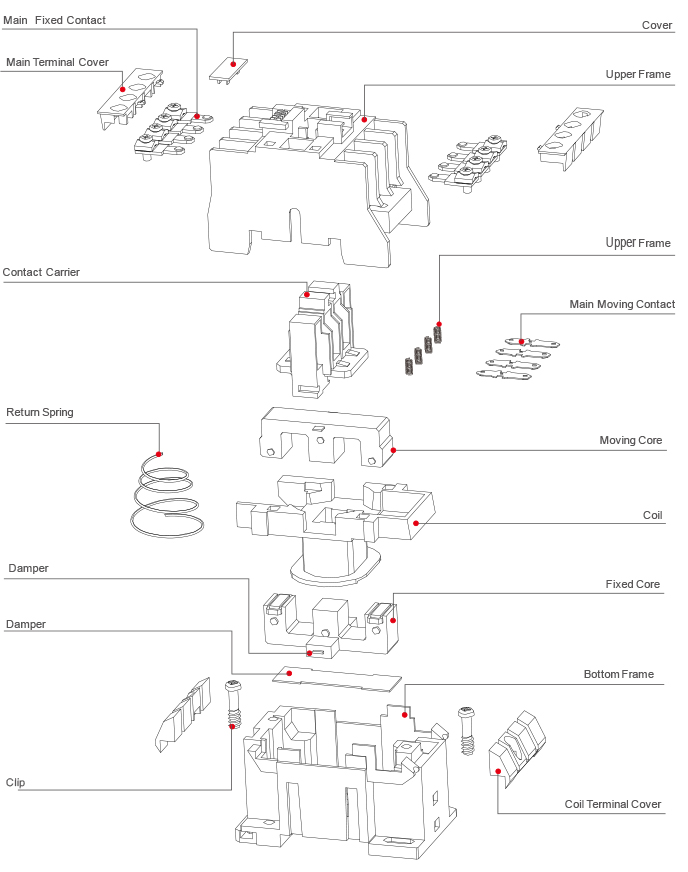

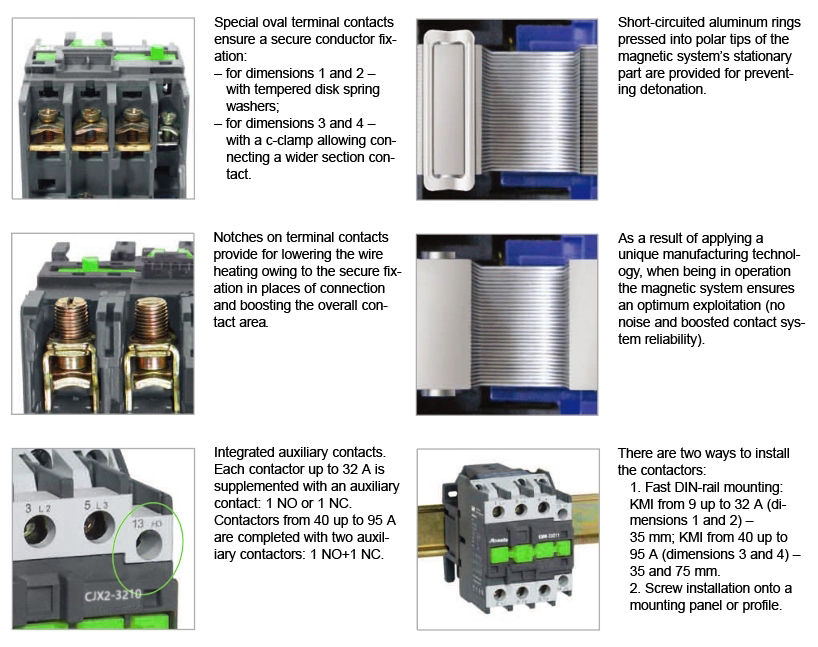

Products Description Application Range CJX2 -□□series contactor is suitable for using in the circuit up to the rated voltage 600V AC 50Hz or 60Hz,DC voltage 220V rated current 150A,for making and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air delayer,machine interlocking device and etc.It is combined into the delay contactor, mechanical interlock contactor, switchover Capacitor Contactor, Star-delta Starter, with the thermal JR28 relay; it is combined into the electromagnetic Starter. Accseeory Assembly Illustration Advantages: • Broadened range of CJX2 compact Contactors as compared to the similar products from domestic manufacturers on the market.
• Wide range of optional devices readily available in the stock ( F4 or F8 contact attachments, LA2-DT time-delay attachments, JR28
thermal Relays).
• Installation on 35 mm Din Rail is possible (other domestic manufacturers offer this fixing only as optional feature).
• Reverse version can be obtained using the interlocking mechanism.
Contact arrangement
1NO+1NC

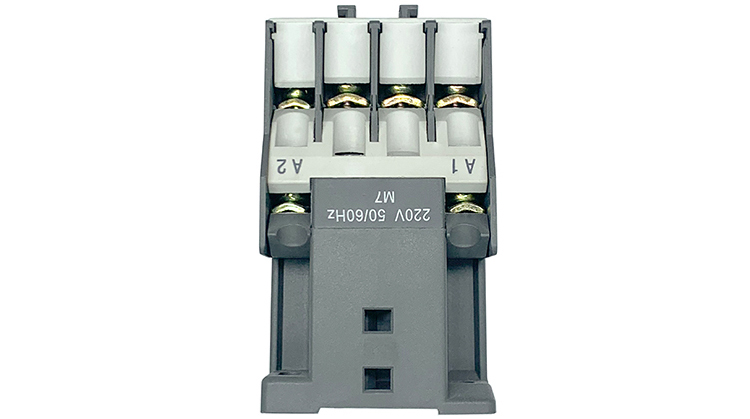

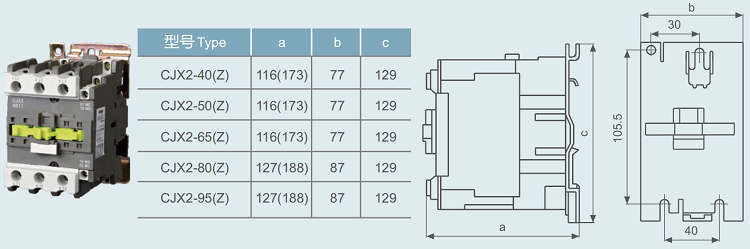

Dimensional drawing Front View
Vertical View

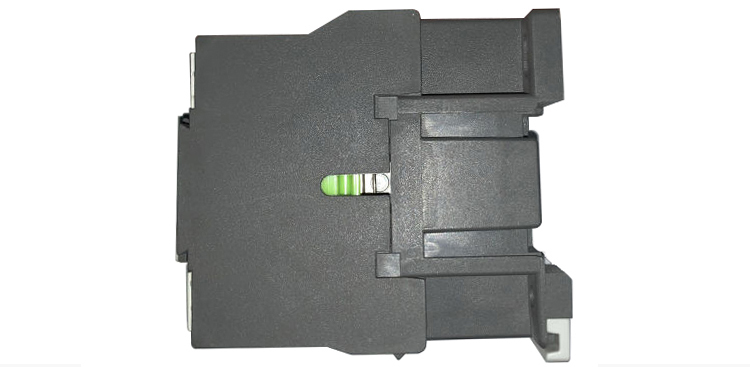

Side View

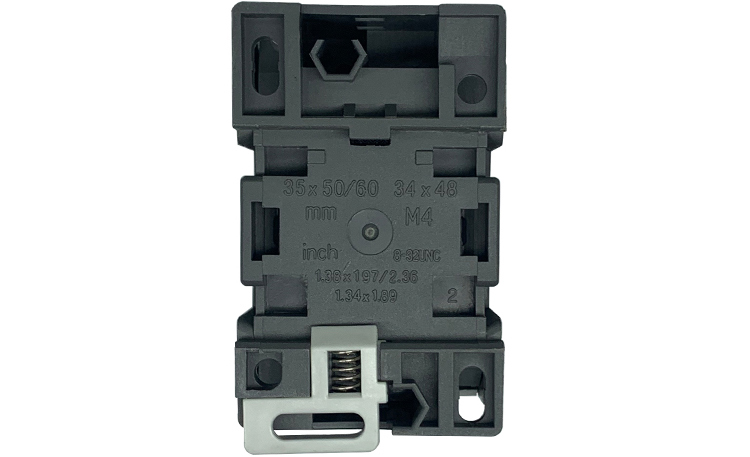

Back View

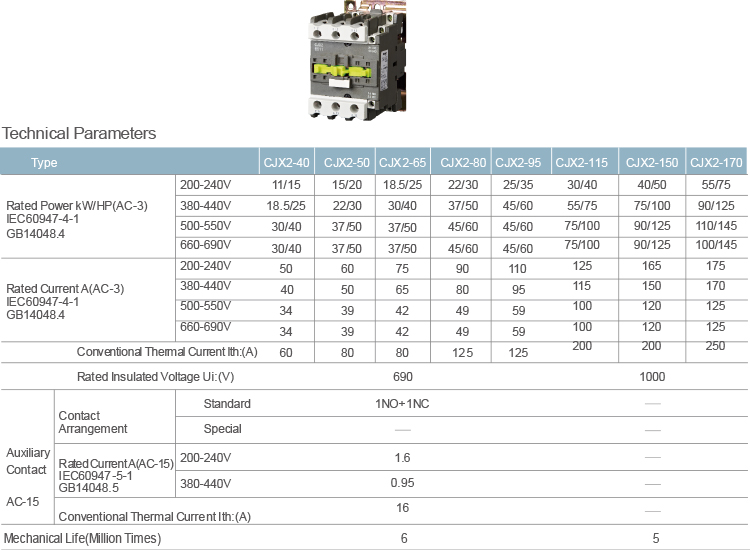

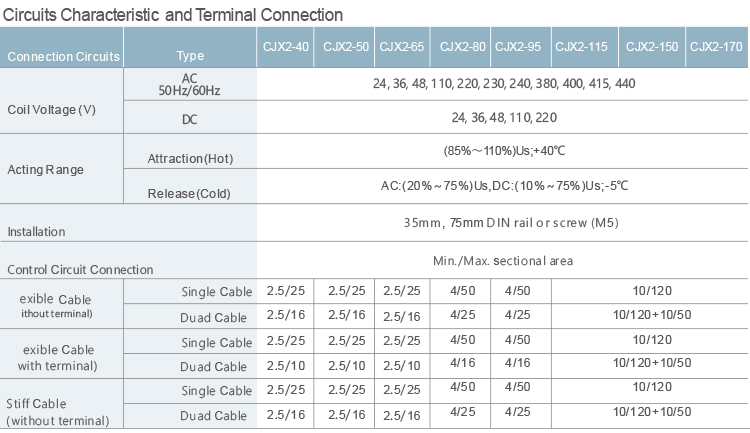

Technical Parameters More Products-1 Company Introduction FAQ Q 1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipping

Q 2. How's the delivery time ?
A. usually it will take about 25 days for production

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this
certificate.

Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.

Contact us if you need more details on Ac Contactor 36v. We are ready to answer your questions on packaging, logistics, certification or any other aspects about magnetic contactor ac、220v coil AC Contactor. If these products fail to match your need, please contact us and we would like to provide relevant information.
