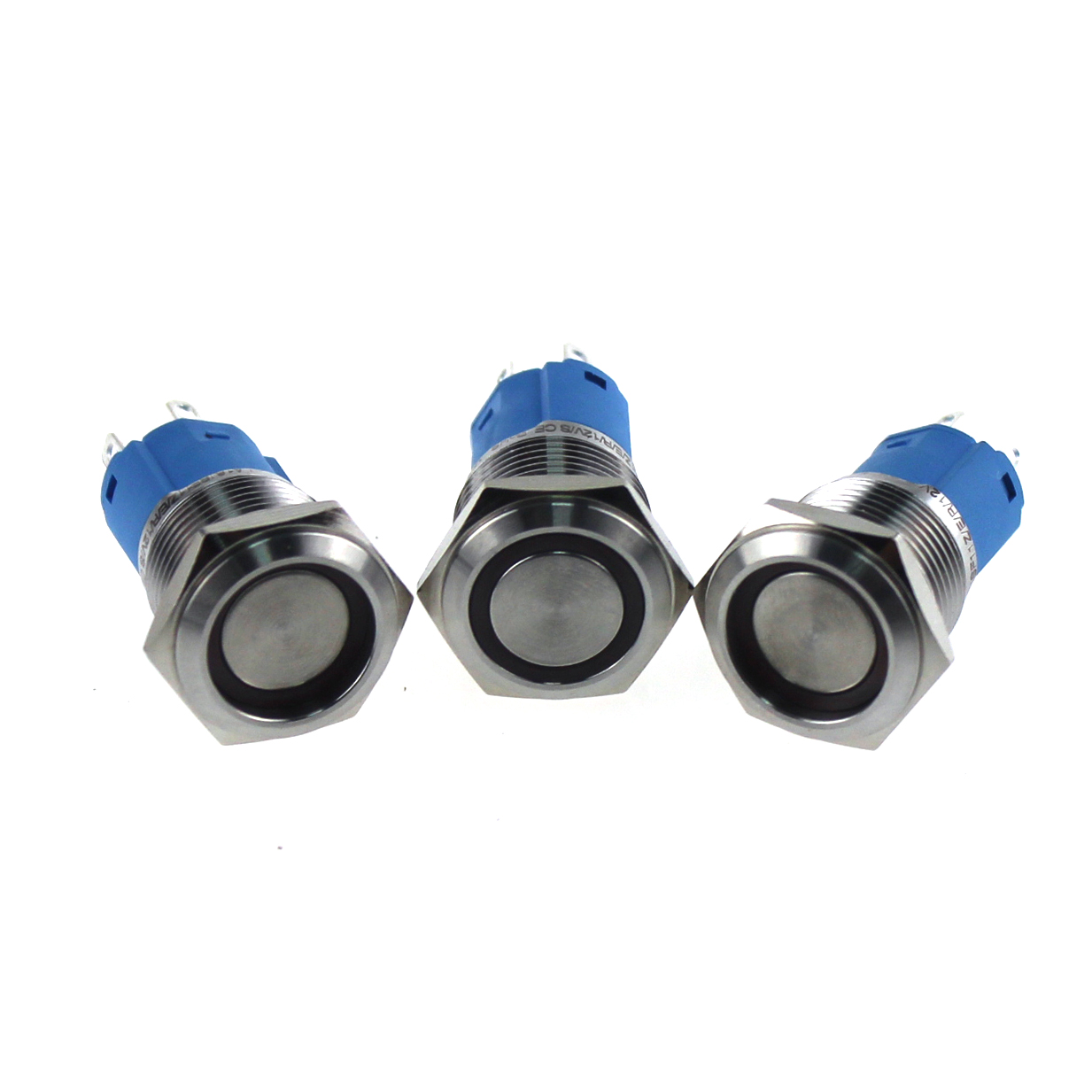

YUMO 19mm self-lock Led Metal Push button switch

Product Description

LA16JSF 19mm stainless steel flat round Metal Push Button Product Description
  • 19mm diameter
  • Switch Rating:3A/250VDC
  • Contact Configuration:1NO or 1NC
  • Operation Type:Alternate
  • The Front Shape: Flat Round
  • The Crust Material:Stanless Steel/Brass(Nickel Plated )
  • IP Degree:IK10/IP67

Technical Specifications
Specification ABS19S-P1Z-E
The Front Shape Flat Round
Terminal Type Pin Terminal
Switching NO.1
Max.Switch Rating lth:3A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~10mm
Tortque 5~ 14Nm
Operation Pressure 2.5~4N
Operation Distance About 2.8mm
IP Degree IK10/IP67
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Stee(Nickel Plated,Gold Plated)
Base PBT
LED Specl Type NO
Rated voltage
40000 hours
  Detailed Images   Main Products About us   FAQ Q:How to order our product?
