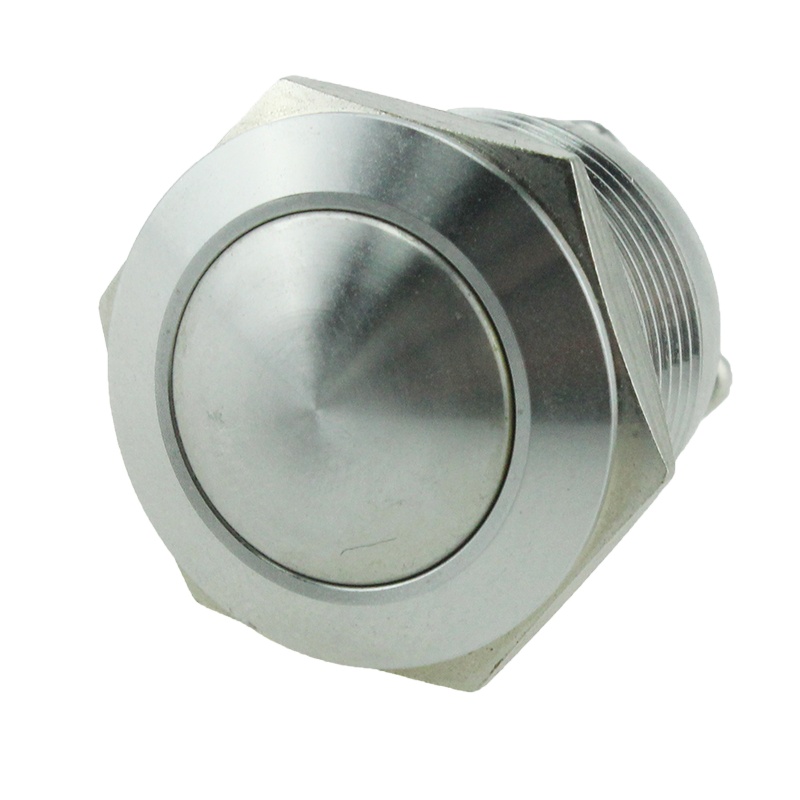

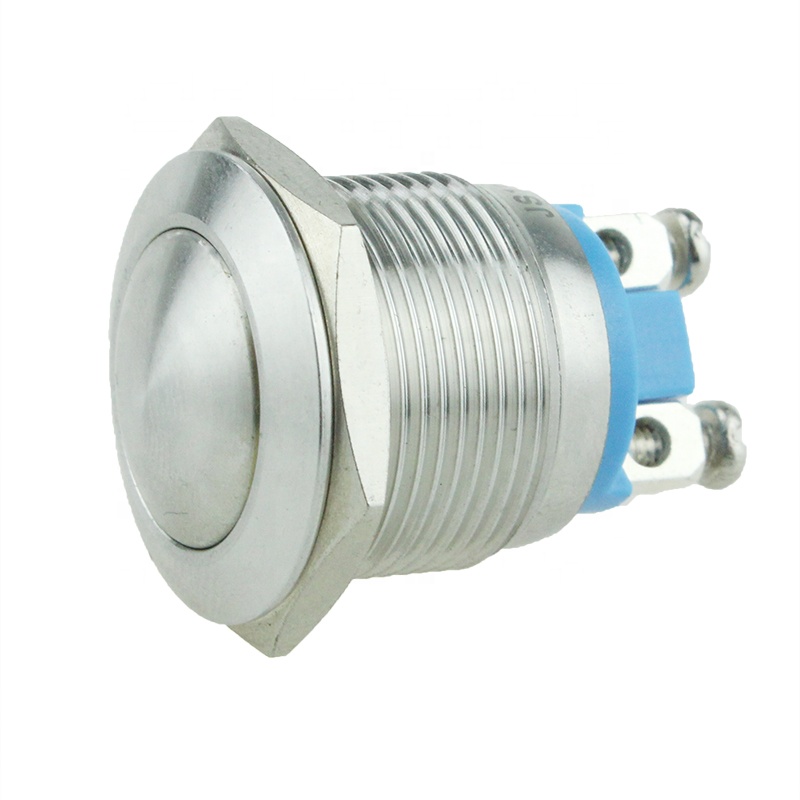

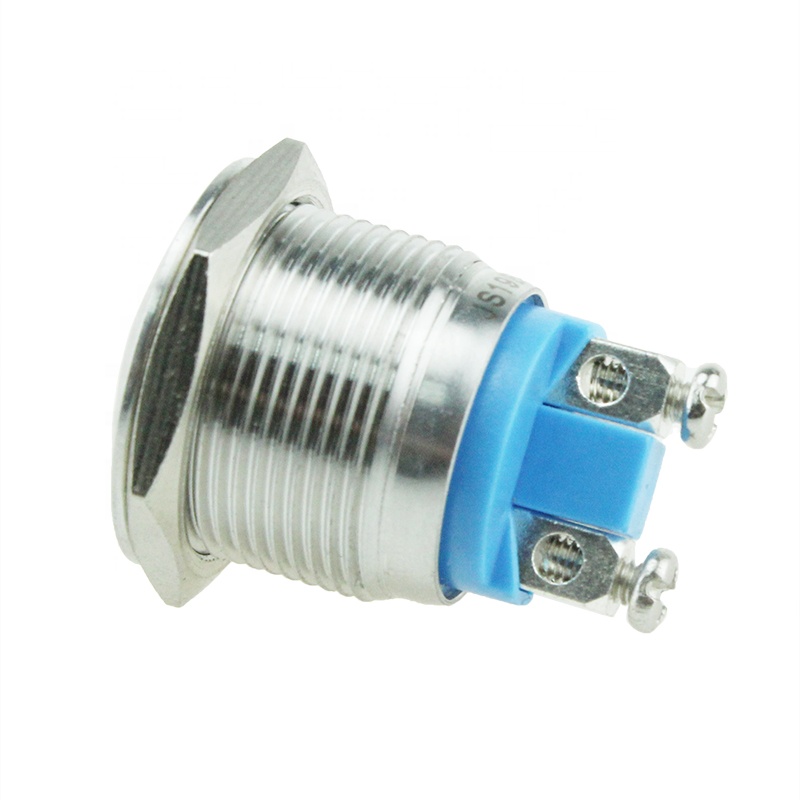

JS19B-10S 19mm Stainless Steel metal switch IP65 waterproof push button

Product Description

Product Description
Features: Dimemsions:
  • 19mm diameter
  • Switch Rating:2A/36VDC
  • Contact Configuration:1NO
  • Operation Type:Momentary
  • The Front Shape: Domed
  • The Crust Material:Stanless Steel
  • IP Degree:IP65

Technical Specifications
Specification JS19B-10S
The Front Shape Domed
Terminal Type Screw Termlnals
Switching NO.1
Max.Switch Rating 2A/36VDC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55
Mechanical life 1,000,000cycles
Eictical life 200, 000cycles
Panel Thickness 1~6mm
Tortque 5~ 14Nm
Operation Pressure About 4N
Operation Distance About 1.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Stee(Nickel Plated,Gold Plated)
Base PBT
